M18 Shielded Inductive Sensor with Universal Supply

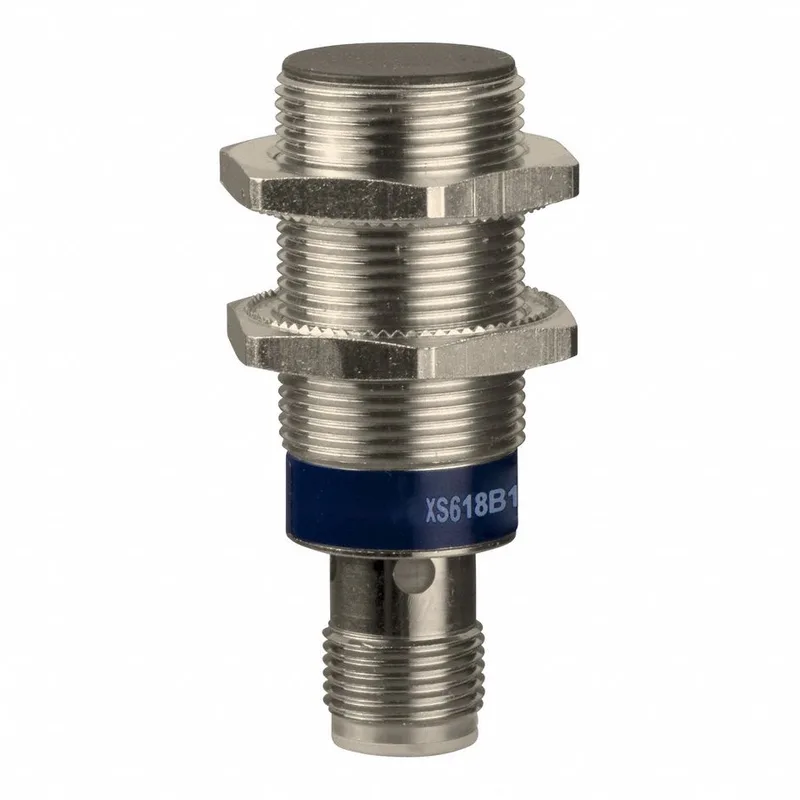

The XS618B1MBU20 is an M18 shielded inductive proximity sensor from the XS6 series with an 8 mm maximum sensing distance—longer than typical M18 shielded sensors thanks to the Extended Range feature. It runs on any supply from 24 up to 240 V AC or DC, so one part covers both line voltages and eliminates separate AC/DC SKUs. The NC output (2-wire, normally closed) mates with standard PLC digital inputs or relay coils. The 3-pin 1/2-in connector makes replacement fast—no need to strip and terminate wires. Body is nickel-plated brass rated IP67 and IP69K, with NEMA 4X, so it survives washdown in food or pharmaceutical lines without a secondary enclosure.
Why Choose This Over a Larger Sensor or a DC-Only Option?
Compared to the larger M30 XSAV02801 (15 mm range, bare-wire cable, DC-only), the XS618B1MBU20 saves panel space with an M18 mounting hole and a connector that cuts installation time. The XSAV02801 offers a longer sensing distance but requires a 30 mm hole and a prewired cable—useful if you need reach and don't mind the larger footprint. The XS618B1MBU20 also runs on AC, so it's the only choice if your control circuit is line-powered. For a block-style alternative, the XS8D1A1MAU20 offers a 60 mm sensing distance in a rectangular PBT housing, but it's unshielded and requires a larger cutout. The XS618B1MBU20's shielded face allows flush mounting without derating—critical when you can't maintain the standard standoff.
Mounting and Wiring Notes
M18 threaded body, 73 mm overall height. Shielded face permits flush mounting; sensing distance remains at 8 mm when the face is level with the surrounding metal. The 2-wire NC output is polarity-insensitive but keep the load current under 300 mA. Use a standard 3-pin micro (1/2-in) cordsets—pins are numbered per industry convention.
