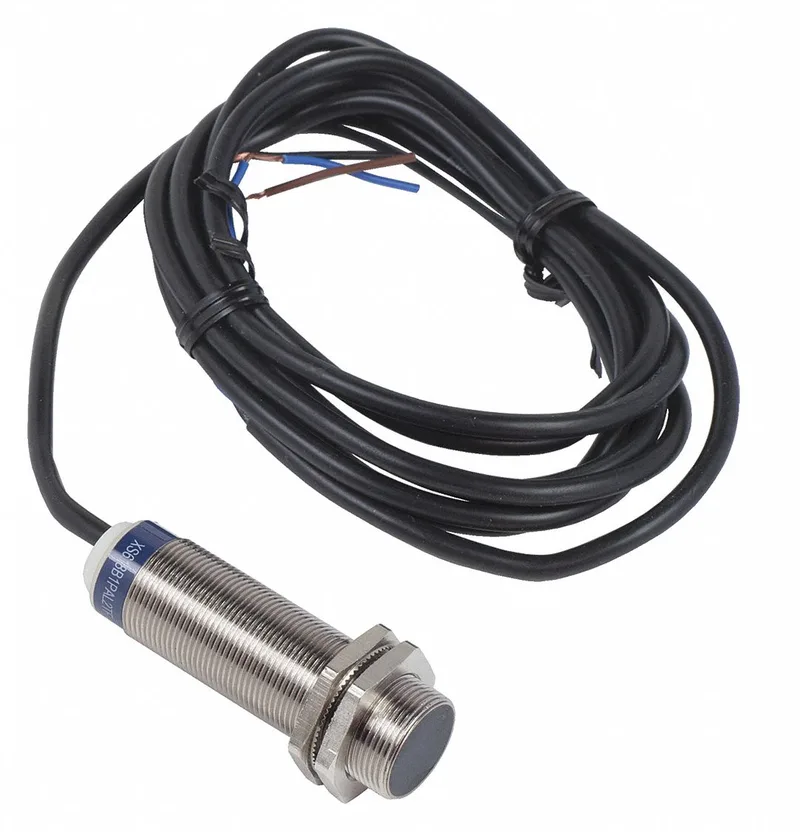

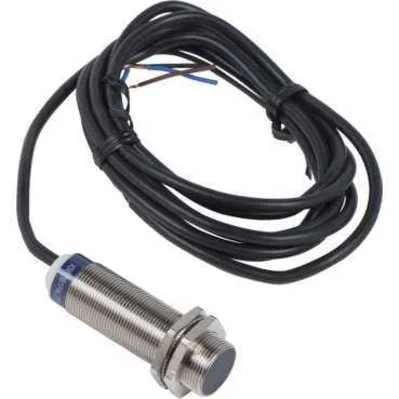

The XS618B1PAL2TF: Rated IP68 and IP69K, this XS6 inductive sensor is built for washdown zones where hosing and chemical exposure are daily. The nickel-plated brass body resists corrosion from chlorine, H2S, or caustic cleaners — a step above painted or plastic housings. Output is PNP normally open, switching 12-48V DC over a prewired 2m pigtail. Sensing range is 8 mm, with overload, reverse polarity, and short circuit protection built in, so a miswired or stalled output won't kill the sensor immediately.
Cable-length variant: XS618B1PAL5
If your original panel spec called for a 5 m cable, the XS618B1PAL5 is a direct swap — same nickel-plated brass body, same 8 mm sensing range, same PNP NO output, same IP69K rating. The only difference is the lead length; mounting and wiring are identical. No need to change brackets or re-run conduit if you are swapping in the field.
Mounting & wiring
Standard cylindrical threaded barrel with a nickel-plated brass body; three wires: brown (V+), blue (V-), black (PNP NO output). The 2 m cable terminates in bare ends; an indicator light on the barrel aids commissioning, visible from most angles.
