Schneider Electric XS630B1MBL2 — Proximity Sensors

Telemecanique XS630B1MBL2 Inductive Proximity Sensor, M30, 1

MPNXS630B1MBL2

Telemecanique XS6 series inductive cylindrical proximity sensor, M30 threaded, shielded, NC output, 2-wire AC/DC 24-240V, 15 mm sensing distance, IP68/IP69K, 2 m cable.

$27.94Ref. price · indicative, final on quote
Schneider Electric XS630B1MBL2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS630B1MBL2 — Identification
ParameterValue
SeriesXS6
XS630B1MBL2 — Sensing
ParameterValue
Sensing distance, max. (alt.)15 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS630B1MBL2 — Electrical
ParameterValue
Supply voltage24-240V AC ; 24-240V DC
AC supply voltage rating24-240V AC
DC supply voltage rating24-240V DC
Number of wires2
Electrical connectionBare Wire
Electrical installation typePrewired Cable
XS630B1MBL2 — Output
ParameterValue
Output circuit contact formNC
Output circuit typeAC/DC-Type
Includes indicator lightsIndicator Lights Included
Output circuit2-Wire AC/DC
XS630B1MBL2 — Mechanical
ParameterValue
Body styleCylindrical
Overall height62 mm
Body materialBrass
XS630B1MBL2 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP68; IP69K
XS630B1MBL2 — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

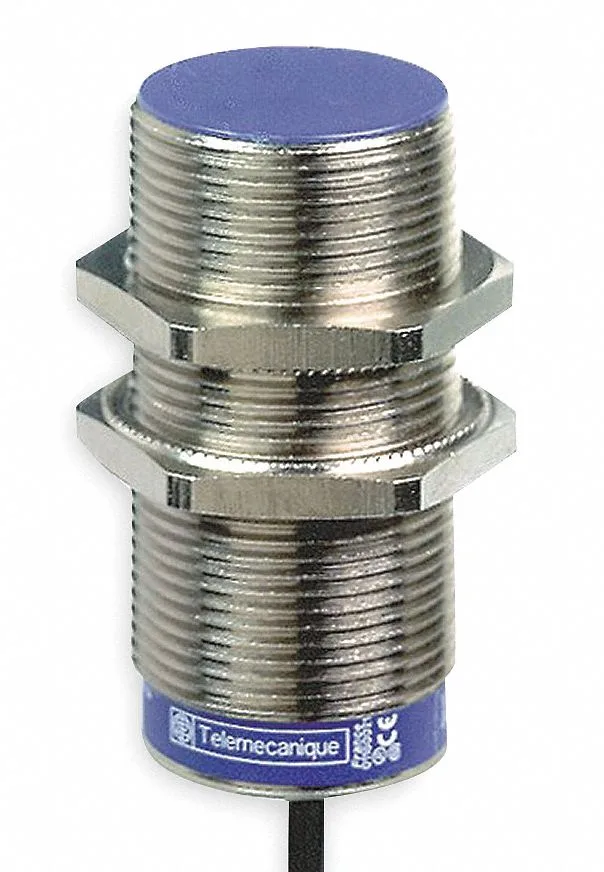

The Telemecanique XS630B1MBL2 is a cylindrical inductive proximity sensor from the XS6 series, with a 30 mm diameter and M30 threaded body in nickel-plated brass. It is shielded (flush-mountable) and normally closed (NC), switching on a 2-wire AC/DC supply from 24 to 240 V. The maximum load current is 300 mA. Sensing distance is 15 mm, with a minimum of 8 mm. The prewired cable is 2 m long, bare wire termination.

Rated IP68 and IP69K, plus NEMA 4X, so this sensor handles high-pressure washdown and submersion — common in food, beverage, and washdown zones. The nickel-plated brass body resists corrosion. Operating temperature spans -13 °F to 158 °F. An integral LED indicator confirms the switching state.

Frequently asked questions

What compliance documentation does the XS630B1MBL2 carry?

It is listed with CE, CSA, RoHS, and UL certifications, which cover most industrial and commercial panel requirements.

Will the XS630B1MBL2 drop into a panel specified around the XSAV02801 without rewiring?

Both sensors share a 2-wire NC output, M30 thread, 2 m cable, and similar sensing distance (15 mm). The XSAV02801 is DC-only (24-210 V DC), while the XS630B1MBL2 accepts both AC and DC (24-240 V). If the original panel supplies AC, the XS630B1MBL2 is a direct drop-in; if DC only, verify the supply voltage range matches.

MPN
XS630B1MBL2
