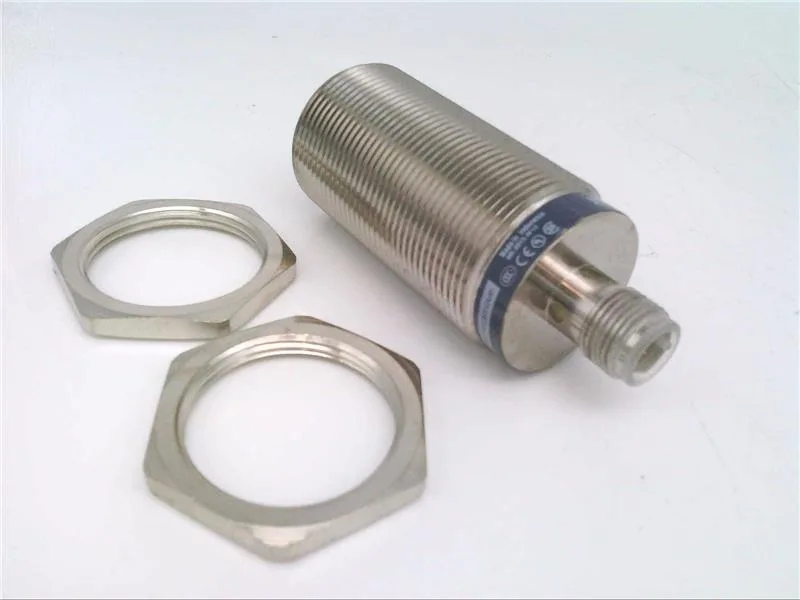

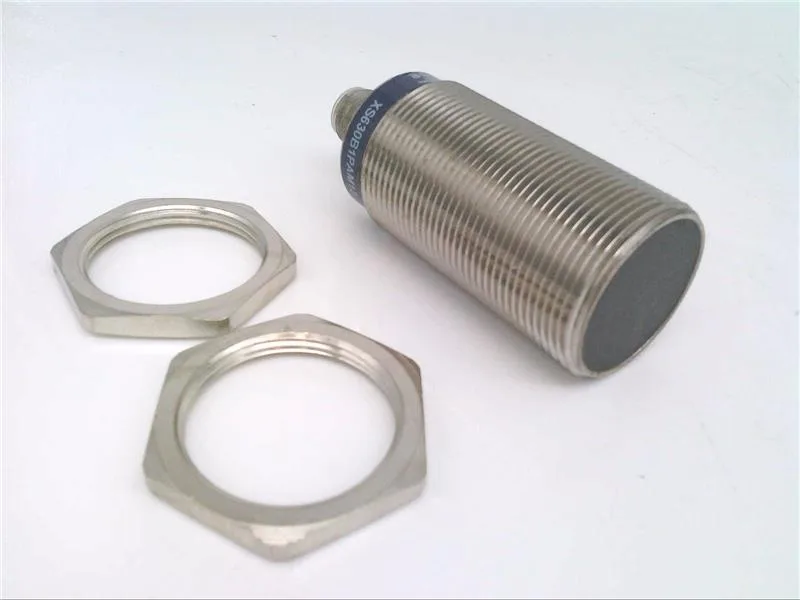

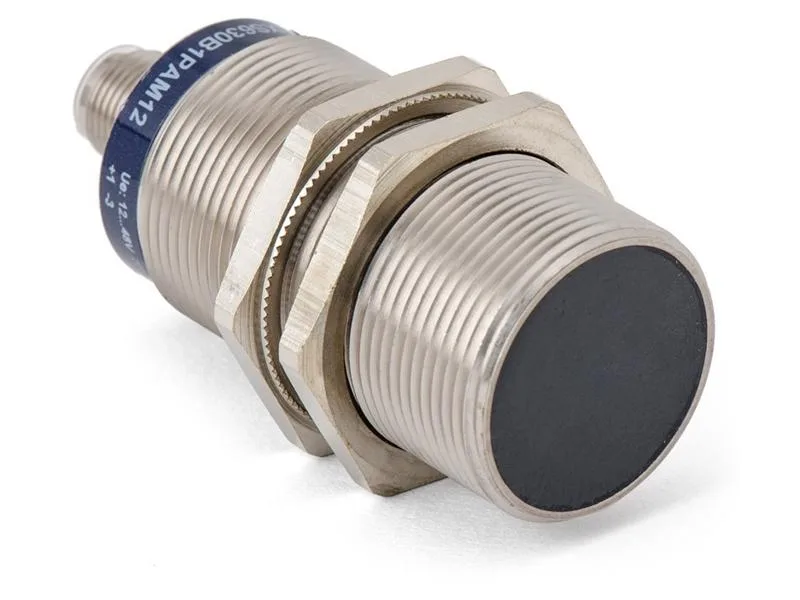

The Telemecanique Sensors XS630B1PAM12 is a shielded M30 cylindrical inductive proximity sensor with a PNP normally-open output, rated for 12–48 VDC supply and 200 mA load current. The IP69K rating means it withstands high-pressure, high-temperature washdown cycles — common in food and beverage lines where a sensor swap needs to hold up to daily sanitation. The shielded sensing face gives a nominal 8 to 15 mm detection range, repeatable on ferrous targets.
Telemecanique XS630B1PAM12, M30 Inductive Prox IP69K
MPNXS630B1PAM12
Telemecanique Sensors XS630B1PAM12 inductive proximity sensor, M30 shielded, PNP NO, 15 mm sensing range, IP69K.
$21.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XS6 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 15 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-48V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-48V DC |
| Number of wires | 3 |
| Electrical connection | M12 |
| Electrical installation type | Direct Connector |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | PNP |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | PNP |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 74 mm |
| Body material | Brass |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67; IP69K |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; E2; RoHS; UL Listed |
Product details
Frequently asked questions
What is the series of the XS630B1PAM12?
It belongs to the XS6 series from Telemecanique Sensors.
What IP rating does the XS630B1PAM12 carry?
IP67 and IP69K, making it suitable for high-pressure washdown environments.
What compliance documentation is available for the XS630B1PAM12?
The sensor is CE, CSA, UL Listed, and RoHS compliant.
MPN
XS630B1PAM12
