What this XS7 sensor brings to a panel

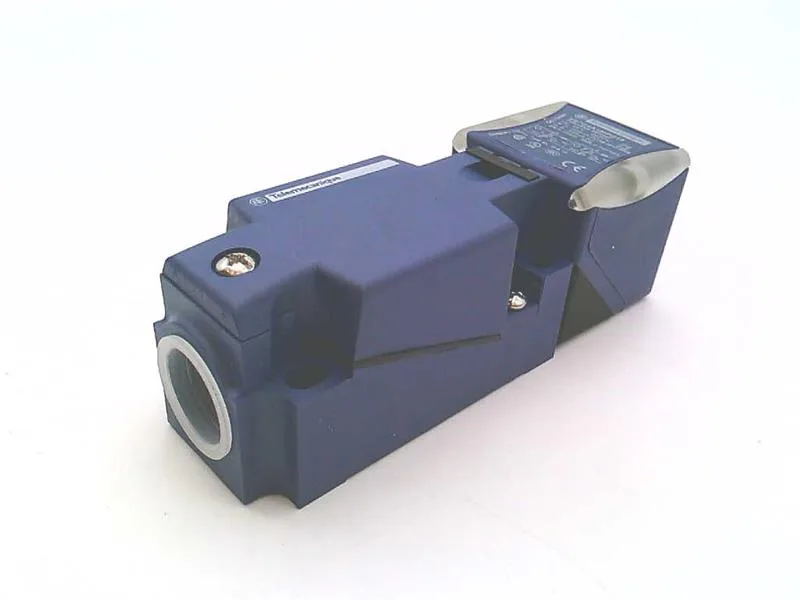

The Telemecanique Sensors XS7C4A1MPG13 is an inductive proximity sensor from the XS7 series, built for industrial environments where you need a rugged, shielded rectangular sensor with a 15 mm sensing distance. It handles both AC and DC supplies from 24 up to 240 V, so it plays well with global panels without needing a dedicated power rail. The output is programmable as normally open or normally closed, which simplifies stocking—one part covers both wiring preferences. Rated IP65, IP67, and IP69K, this sensor can handle high-pressure washdowns, making it a natural fit for food processing, beverage lines, or any washdown zone. The PBT body resists chemicals and impacts, and the built-in indicator light gives you a quick visual on switching state during commissioning.
Mounting and wiring notes for panel builders
The rectangular body measures 40 mm wide by 40 mm deep by 117 mm tall, with a screw clamp terminal connection accepting bare wires. Shielded construction allows flush mounting in metal without derating the 15 mm sensing range. The 2-wire design simplifies wiring—just match the supply polarity (it's polarity-sensitive on DC) and select NO or NC via the programming input during power-up.
