Part in context

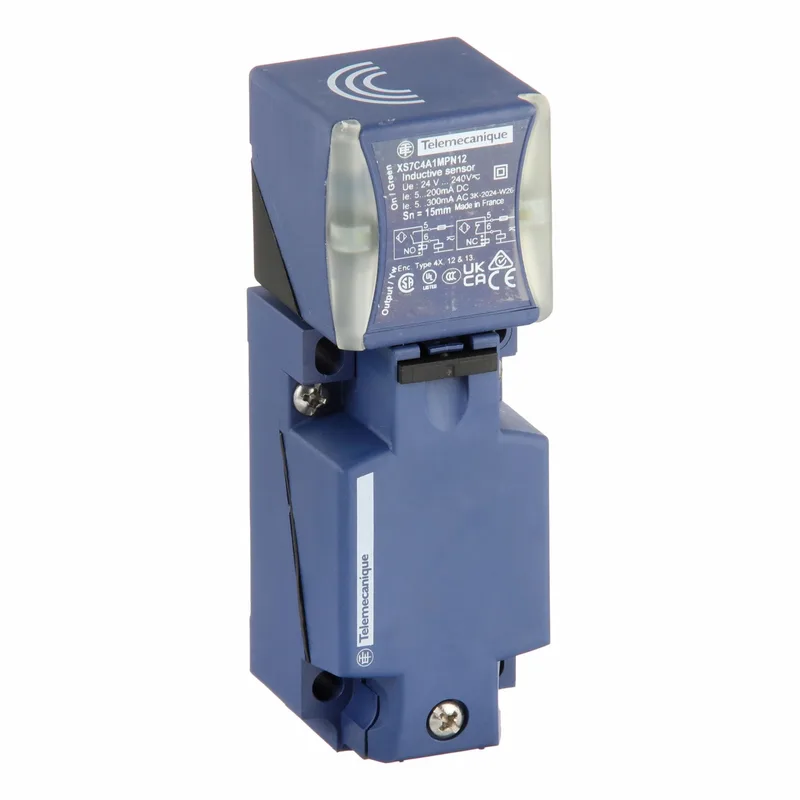

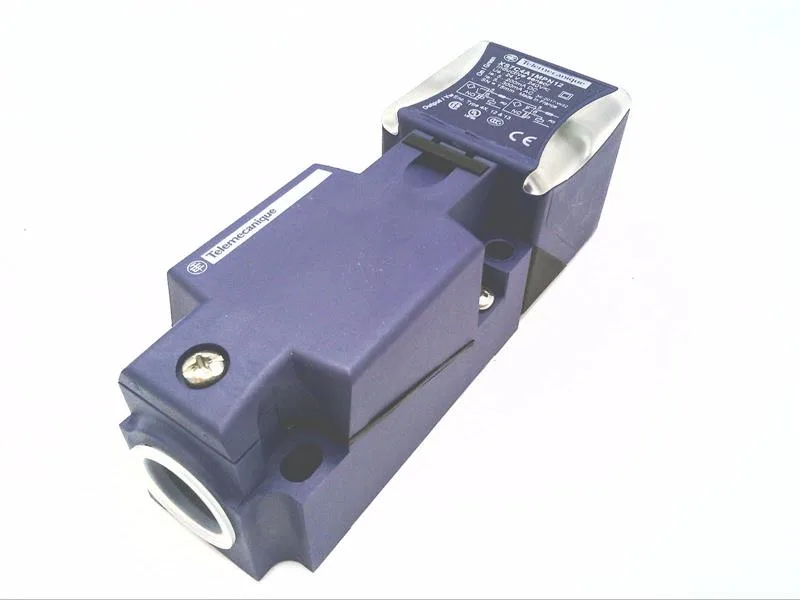

The Telemecanique XS7C4A1MPN12 is a shielded inductive proximity sensor in a rectangular PBT housing, rated for 15 mm sensing distance and a wide supply range from 24 to 240 V AC or DC. It carries IP65, IP67, and IP69K ingress protection, so it handles high-pressure washdown environments common in food and beverage lines. The 2-wire output is programmable for NO or NC, and the screw clamp terminals accept bare wire directly. With a 300 mA maximum load and a current lifecycle status, this is a straightforward drop-in for washdown zones or general machine sensing.
Integration notes
Inductive design allows flush metal mounting without derating the 15 mm range. Screw clamp terminals accept bare wire; the 2-wire loop limits load to 300 mA.
Compliance at a glance
Listed with CCC, CE, CSA, RoHS, and UL. That covers CE for European machine directives, UL for North American panel builds, and RoHS for environmental compliance. No additional REACH statement is in the spec pack, but the RoHS declaration typically covers the same substance restrictions for industrial sensor builds.
