Schneider Electric XS7G12PA140 — Proximity Sensors

Telemecanique XS7G12PA140 Inductive Proximity Sensor, PNP NO

MPNXS7G12PA140

Telemecanique / Schneider Electric XS7G12PA140, Inductive Proximity Sensor, XS7 series, PNP NO, 2 mm sensing range, 12–28 VDC, IP67, cable 2 m.

$22.86Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

XS7G12PA140 — Identification
ParameterValue
TypeInductive Proximity Sensor
XS7G12PA140 — Electrical
ParameterValue
Supply voltage12 … 28 V DC
Electrical connectionCable 3-Wires, 2 m
XS7G12PA140 — Mechanical
ParameterValue
Housing materialPlastic
XS7G12PA140 — Other specifications
ParameterValue
ModelXS7G12PA140
Weight0,08 kg
ConditionNew
Shelf no.240924
Dimensions40 x 12 x 26 mm
Sensor nameXS7
Sensing distance2 mm
Detection faceLateral
Type of productInductive Proximity Sensor
IP ratingIP67
Output signal typePNP 1 Normally Open (NO)
Operating temperature-25 … 70 °C
Rated switching capacity current100 mA

Product details

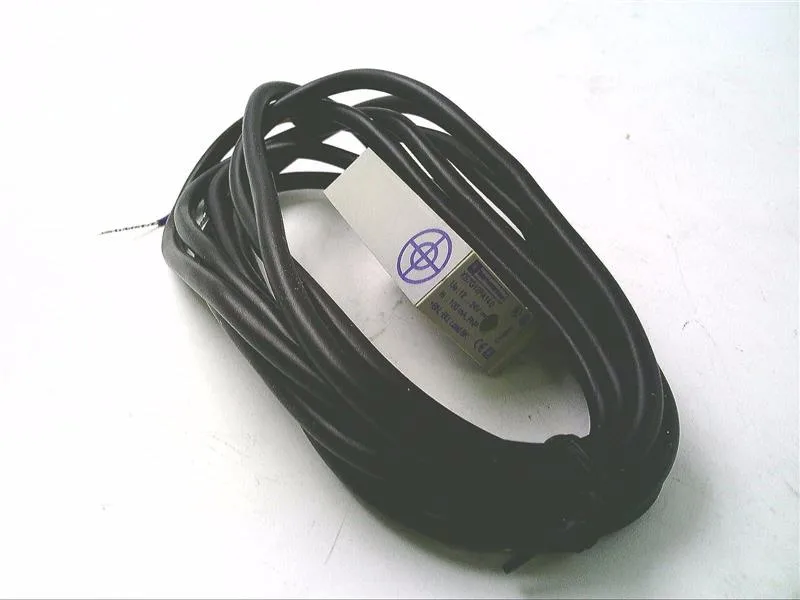

This is a Telemecanique XS7G12PA140 inductive proximity sensor from the XS7 series. It's a flat-profile plastic barrel, side-lateral sensing face, rated for 2 mm detection range on ferrous targets. That 2 mm is a short-range sniffer — intended for close-proximity position feedback or presence on small actuators, not for long standoff. Supply is 12 to 28 VDC, output is PNP normally open, switching up to 100 mA. So it'll interface directly with most PLC digital inputs (sink or source depending on your commons) and relay coils within that current limit.

Housing and environment

IP67, plastic housing. That IP67 rating means it survives temporary submersion and hose-down, but I'd be cautious about continuous immersion or high-pressure washdown in a digester vault — the plastic body won't corrode, but the cable gland and housing joint are the weak points. For most industrial indoor environments and non-submerged outdoor spots it's fine. Ambient range -25 to 70 °C. The cable is 2-meter three-wire, ready to land in a terminal box or M12 connector (not included, bare leads).

Frequently asked questions

What type of sensor is the XS7G12PA140?

It is an inductive proximity sensor with PNP normally open output, 2 mm sensing range, 12–28 VDC supply, and a 2-meter cable.

What is the ingress protection rating?

IP67, meaning dust-tight and protected against temporary submersion.
