Schneider Electric XS8C1A1MAL01U20 — Proximity Sensors

Telemecanique XS8C1A1MAL01U20 Inductive Proximity Sensor, 25

MPNXS8C1A1MAL01U20

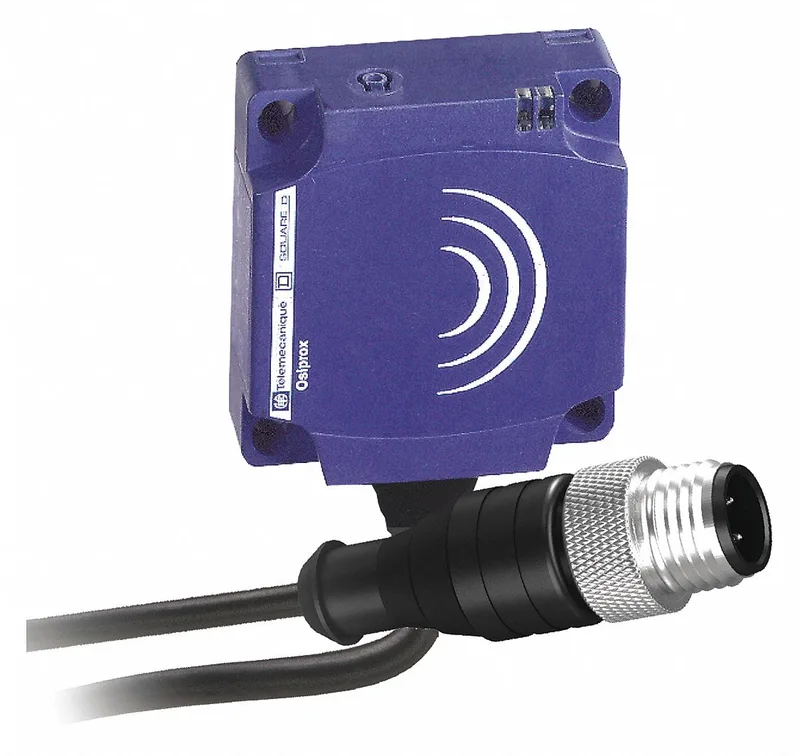

Telemecanique XS8C1A1MAL01U20, Size C rectangular inductive proximity sensor, shielded, 2-wire AC/DC 24-240V, NO output, 25 mm maximum sensing distance, IP67 / NEMA 4X enclosure, with indicator light, 0.15 m cable with 1/2 in connector.

$48.26Ref. price · indicative, final on quote

Add to RFQ

Schneider Electric XS8C1A1MAL01U20 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS8C1A1MAL01U20 — Identification
Parameter	Value
Series	XS8

XS8C1A1MAL01U20 — Sensing
Parameter	Value
Sensing distance, max. (alt.)	25 mm
Sensing method	Inductive
Sensing-face shielding	Shielded

XS8C1A1MAL01U20 — Electrical
Parameter	Value
Supply voltage	24-240V AC ; 24-240V DC
AC supply voltage rating	24-240V AC
DC supply voltage rating	24-240V DC
Number of wires	2
Electrical connection	1/2 in Connector
Electrical installation type	Direct Connector

XS8C1A1MAL01U20 — Output
Parameter	Value
Output circuit contact form	NO
Output circuit type	AC/DC-Type
Includes indicator lights	Indicator Lights Included
Output circuit	2-Wire AC/DC

XS8C1A1MAL01U20 — Mechanical
Parameter	Value
Body style	Rectangular
Overall height	15 mm
Body material	PBT

XS8C1A1MAL01U20 — Environmental
Parameter	Value
Operating temperature, max. (alt.)	158 °F
Operating temperature, min. (alt.)	-13 °F
IP rating	IP67

XS8C1A1MAL01U20 — Approvals
Parameter	Value
Standards / certifications	CCC; CE; CSA; Ecolab; RoHS; UL Listed

Product details

Integrator's note

The XS8C1A1MAL01U20: Size C shielded inductive proximity sensor, 25 mm maximum sensing distance. The 2-wire AC/DC supply (24-240 VAC / 24-240 VDC) drops into any control circuit without polarity fuss — rated NO, 300 mA load. IP67 and NEMA 4X enclosure handles washdown; Ecolab listing (per) fits food-zone environments. The 0.15 m pigtail with 1/2 in connector expects a mating cordset — add that to your BOM.

The XS8D1A1MAL2 is the larger Size D variant (80x80x26 mm) with 60 mm sensing range, 2 m prewired cable, and no indicator light. The C frame here (40x40x15 mm) saves panel space but gives up sensing reach. If your application needs visible LED confirmation at the sensor, this MAL01U20 keeps it; the D version omits it.

Frequently asked questions

What is the series designation?

The series is XS8.

What is the IP rating?

IP67 with NEMA 4X enclosure.

Will XS8C1A1MAL01U20 drop into a panel specified around XS8D1A1MAL2?

No, the mounting dimensions differ (40x40x15 mm vs 80x80x26 mm). Rewiring is required, and the C version has a shorter sensing range (25 mm vs 60 mm).
