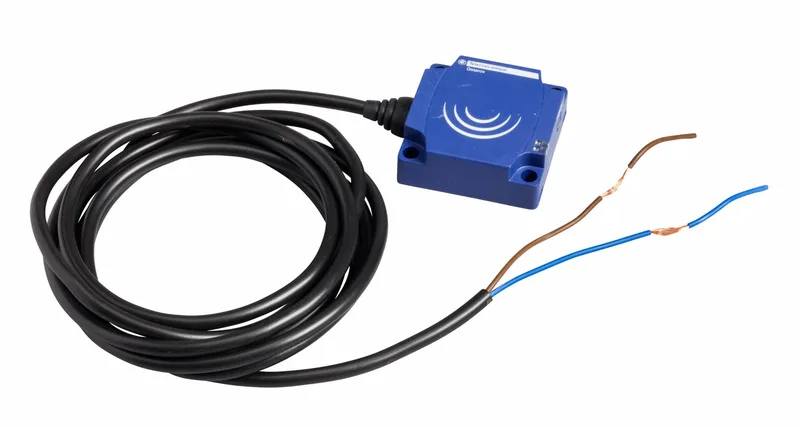

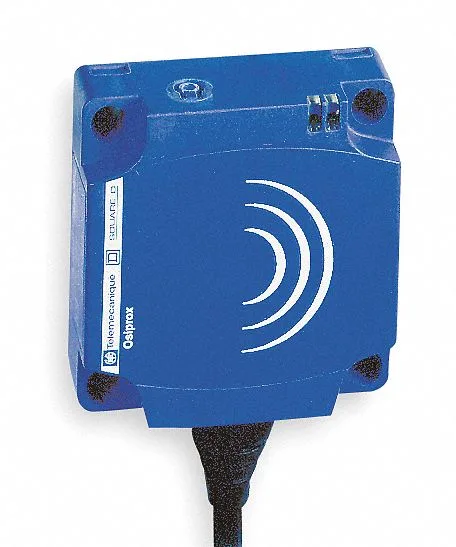

The XS8C1A1MAL2: Rectangular inductive proximity sensor from the XS8 series, shielded face for flush mounting, rated for a 25 mm sensing distance. The 2-wire AC/DC circuit handles 24-240 V on either supply and switches loads up to 300 mA normally open. IP68 and NEMA 4X sealing make it a natural fit for washdown zones and outdoor installs where a compact body helps — the PBT enclosure measures 40 x 40 x 15 mm and comes with a 2 m pigtail of bare wire leads.
The XS8D1A1MAL2 is the same family with a larger body — 80 x 80 x 26 mm — and a 60 mm sensing range. Go with the XS8C1A1MAL2 if panel real estate is tight and 25 mm sensing will cover the target; the sibling is the pick when you need the extra reach and have the mounting space.
Standards coverage includes CCC, CE, CSA, Ecolab, RoHS, and UL Listing — the compliance paperwork is there for food-processing equipment and global OEM shipping. The Auto Adaptable feature means it adjusts its internal circuitry to the applied AC or DC supply voltage without a separate selection jumper.
