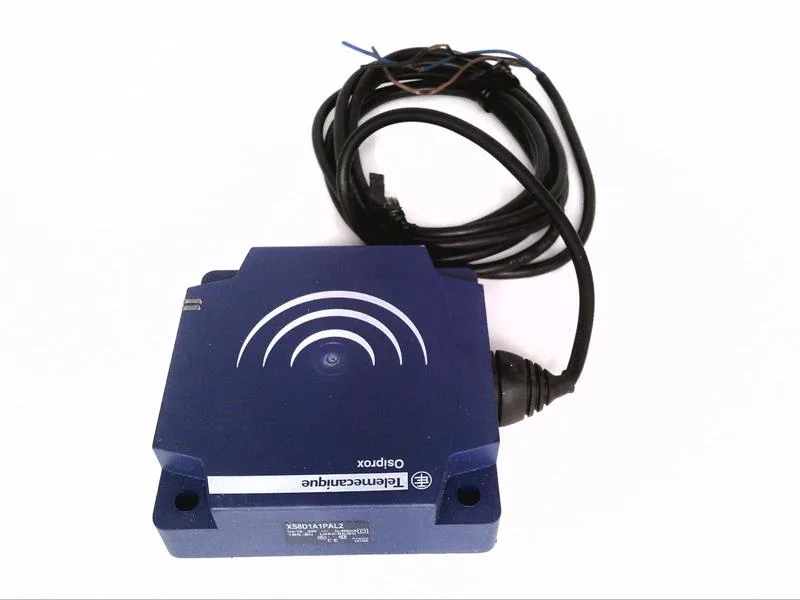

The Square D XS8D1A1PAL2 from the Telemecanique XS8 series is a 60 mm sensing distance inductive proximity sensor in a rectangular block form factor (80 mm W x 26 mm D x 103 mm H). It is unshielded with front sensing, PNP normally open output, 3-wire with a 2 m PVC cable. Operating voltage 12 to 24 VDC, switching frequency 150 Hz, maximum load current 200 mA with LED indication. Enclosure rated IP68 and NEMA 1/4X/12; approvals include UL, CSA, CE.
Square D XS8D1A1PAL2 Inductive Proximity Sensor, 60 mm, PNP
MPNXS8D1A1PAL2
Square D / Telemecanique XS8 Series, XS8D1A1PAL2 inductive proximity sensor, block/rectangular, unshielded, 60 mm sensing distance, PNP NO, 12–24 VDC, 2 m cable, IP68.
$49.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 60 MM |
Output
| Parameter | Value |
|---|---|
| Switching frequency | 150 HZ |
Electrical
| Parameter | Value |
|---|---|
| Number of wires | 3 |
Mechanical
| Parameter | Value |
|---|---|
| Size | 80 MM W X 26 MM D X 103 MM H |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -13 TO 158 DEG F |
Product details
Frequently asked questions
What is the UPC for XS8D1A1PAL2?
UPC 78590198998.
What compliance approvals does XS8D1A1PAL2 carry?
UL, CSA, and CE approvals.
MPN
XS8D1A1PAL2
