Schneider Electric XS930R4PAM12 — Proximity Sensors

Telemecanique XS930R4PAM12 Inductive Proximity Sensor, PNP N

MPNXS930R4PAM12

Telemecanique OsiSense XS inductive proximity sensor, 30 mm barrel, 40 mm sensing distance, PNP NO, 12-24 VDC, IP68/69K, 303 SS.

$68.58Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS930R4PAM12 — Identification
ParameterValue
TypeFERROUS METAL
XS930R4PAM12 — Sensing
ParameterValue
Sensing distance40 MM
XS930R4PAM12 — Output
ParameterValue
Switching frequency90 HZ
Load current200 MILLIAMPERE
XS930R4PAM12 — Electrical
ParameterValue
Number of wires3
XS930R4PAM12 — Mechanical
ParameterValue
Body material303 STAINLESS STEEL
XS930R4PAM12 — Environmental
ParameterValue
Operating temperature range-13 TO 158 DEG F

Product details

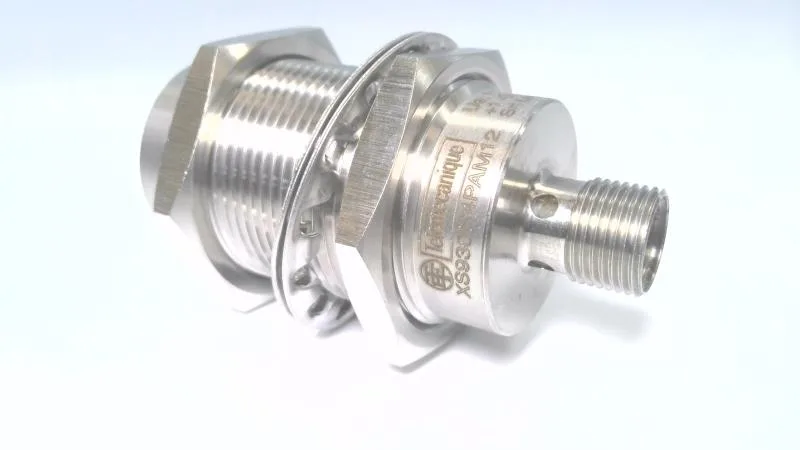

The XS930R4PAM12 is a 30 mm diameter tubular inductive proximity sensor from the Telemecanique OsiSense XS family. It detects ferrous metal objects at up to 40 mm (unshielded) and outputs a PNP normally-open signal. Spec out for a 12 – 24 VDC supply; it sinks 200 mA max and switches at 90 Hz – adequate for moderate-speed part detection but not for high-speed counting lines.

The 40 mm sensing range is long for a 30 mm barrel. That comes from the unshielded (non-flush) design – you need free space around the face; don't embed it in metal. The IP68 / 69K enclosure lets it survive washdown, submersion, and high-pressure steam cleaning, common in food and beverage lines. Both body and sensing face are 303 stainless steel, so it holds up in corrosive or abrasive environments where nickel-plated brass sensors would pit.

Frequently asked questions

What is the sensing range?

40 mm unshielded (non-flush) for a ferrous metal target.

What approvals does XS930R4PAM12 carry?

UL listed for Canada and US, plus CE mark.

MPN
XS930R4PAM12
