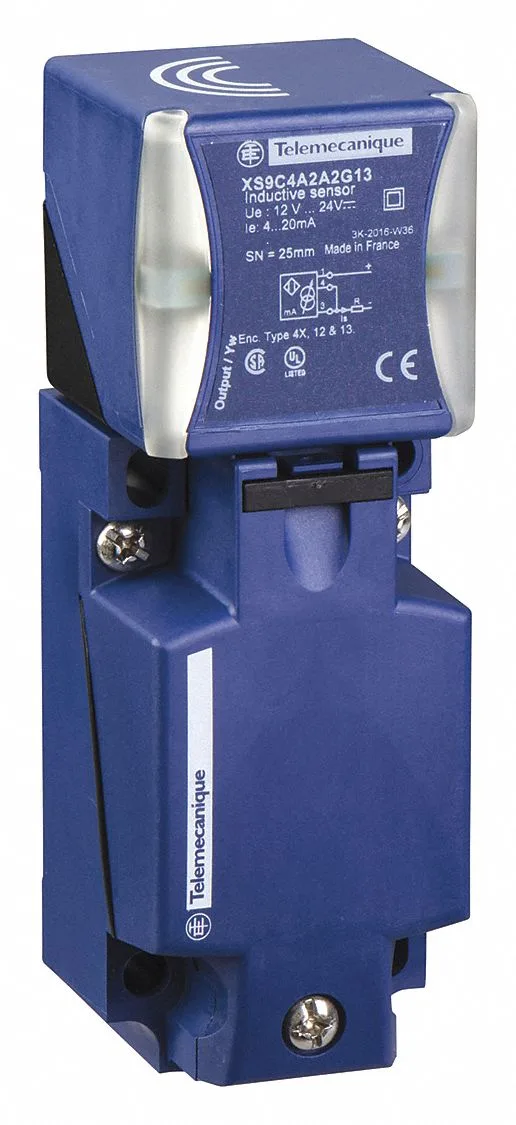

The Telemecanique XS9C4A2A2G13 is a rectangular inductive proximity sensor from the XS9 series, built for washdown and wet-area sensing with IP65, IP67, and IP69K sealing. It uses a 2-wire DC loop, 12-24V DC supply, and sinks up to 20 mA. The unshielded face gives a 25 mm sensing range — useful for non-flush mounting where longer detection is needed without cutting into the panel.
Mounting & Connection
Rectangular body 40 x 40 x 117 mm (WxDxH), PBT housing. Wiring via bare leads with screw clamp terminals. Requires non-flush mounting clearance due to unshielded face.
