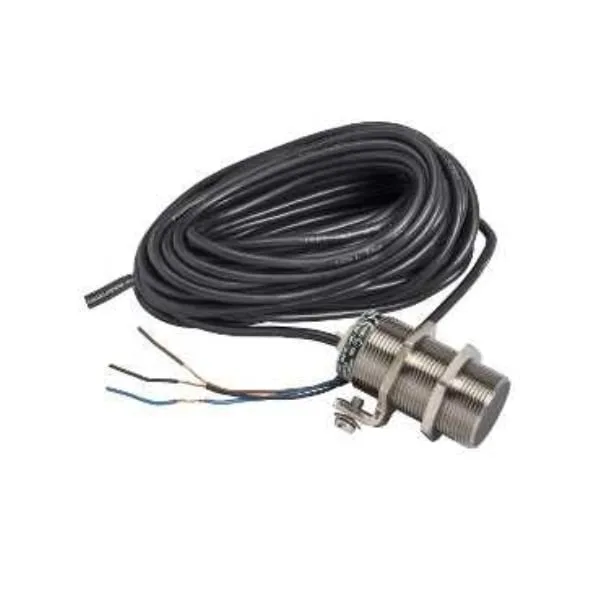

The XSAV11373L05 is a cylindrical M30 inductive proximity sensor from the OsiSense XS range, with a PNP normally-closed output and an 8 mm sensing range. Rated 10-58 VDC, it draws up to 15 mA at no load and switches up to 200 mA with short-circuit protection. A single red LED indicates output state. The nickel-plated brass housing is IP67 rated, and the 5 m cable is pre-wired 3-wire 0.34 mm². Frontal detection face in PPS.
Spring-cage terminal inside the cable connector? No—this is a fixed cable exit. For panel mounting, the M30 x 1.5 thread requires a 30 mm clearance hole and a jam nut (not included). Wire the PNP NC: brown +VDC, blue 0V, black switched output. The 9 s run-up delay at power-up applies; PLC startup logic should account for the initial output state.
