The Schneider XSAV12373L10 is an M30 inductive proximity sensor from the OsiSense XS family, designed for rotation monitoring. It detects ferrous targets up to 8 mm and provides a PNP normally-closed discrete output. The 10 m cable and IP67 rating suit it for harsh industrial environments where you need a reliable, long-run connection. Power it directly from a 10 to 58 V DC supply; the sensor draws under 15 mA at no-load. The 800 Hz switching frequency covers moderate-speed rotation monitoring on shafts and pulleys.

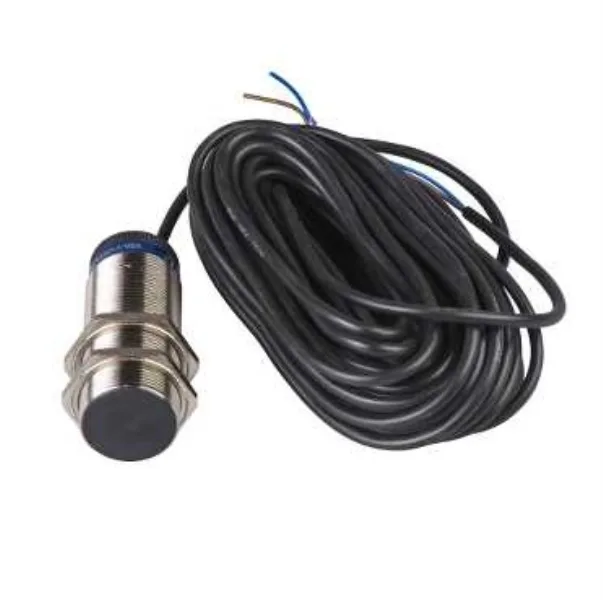

Schneider XSAV12373L10 M30 PNP NC Proximity Sensor 8mm
MPNXSAV12373L10
Schneider Electric XSAV12373L10 inductive proximity sensor, M30 × 1.5, PNP NC, 8 mm range, 10 m cable, IP67.
$72.39 – $124.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Output
| Parameter | Value |
|---|---|
| Output circuit type | DC |
| Switching frequency | <= 800 Hz |
Electrical
| Parameter | Value |
|---|---|
| Electrical connection | Cable |
Mechanical
| Parameter | Value |
|---|---|
| Size | 81 mm |
| Length | 3.19 in (81 mm) |
| Cable length | 32.81 ft (10 m) |
Product details
Frequently asked questions
What sensing range does it provide?
Nominal sensing range is 8 mm (0.31 in).
What output type and wiring does it use?
PNP, normally closed, 3-wire DC with 10 m cable (3 x 0.34 mm²).
What supply voltage does it need?
10 to 58 V DC, draws under 15 mA at no-load.
What is its IP rating?
IP67 per IEC 60529.
What compliance markings does it carry?
CE marked.
MPN
XSAV12373L10
