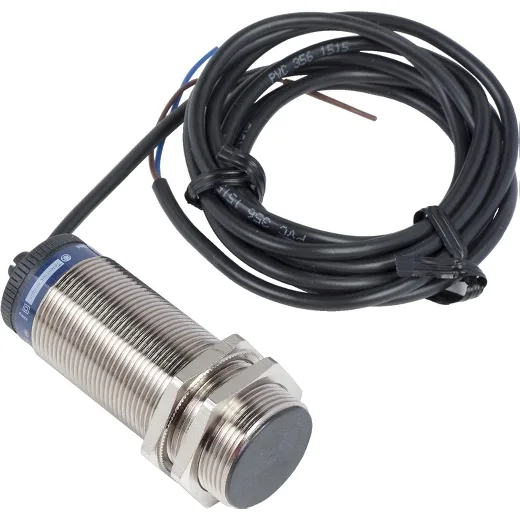

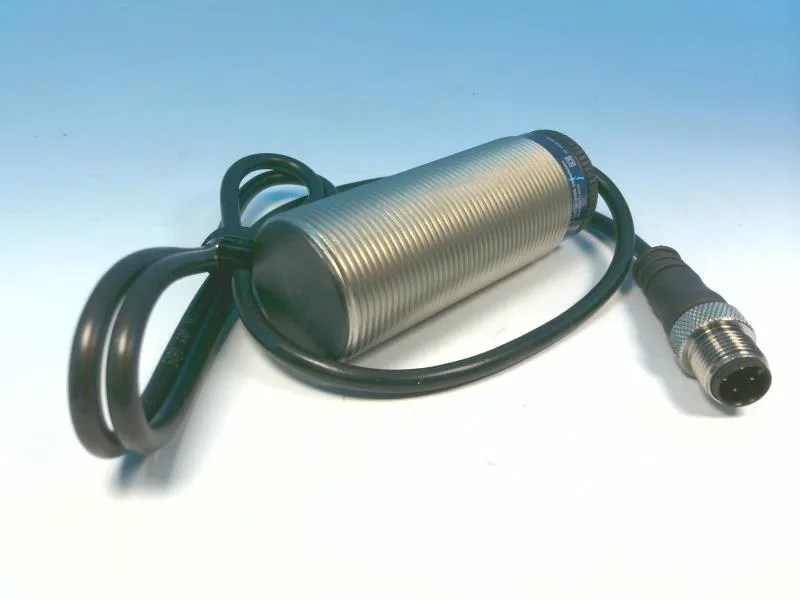

The XSAV1401418: M30 threaded body, 81 mm overall, frontal detection. This 2-wire inductive proximity sensor runs on 20-264 V AC/DC universal supply — no separate power supply needed for different line voltages. Sensing reach is 10 mm nominal, switching at up to 800 Hz with a repeat accuracy of 3% of Sr. Rated IP67, nickel-plated brass housing with PPS sensing face. CE marked.
Wired as a 2-wire discrete output, voltage drop under 5.7 V at closed state, residual current max 1.5 mA open. Run-up delay of 9 seconds at power-up — factor that into the start sequence if the sensor powers rotation monitoring directly. Adjustable frequency range 120-3000 cycles per minute suits its rotation monitoring role. The 2-wire nature simplifies cabling but watch the leakage current through the load in the off state.
