Its 40 mm unshielded sensing range means it can detect a target through a non-metallic wall or at a standoff where shielded sensors would need a flush mount — useful on conveyor sidings or pick-and-place gripper stations where the sensor can't sit in a countersunk hole. Rated IP67, the plastic body and sealed electronics survive washdown on food-processing lines, outdoor conveyor gantries, and wet machining centres. The 12-240VAC supply makes it a direct replacement on legacy AC control circuits where a DC sensor would need a separate power supply — common in older panel retrofits or sites running mixed-voltage zones.

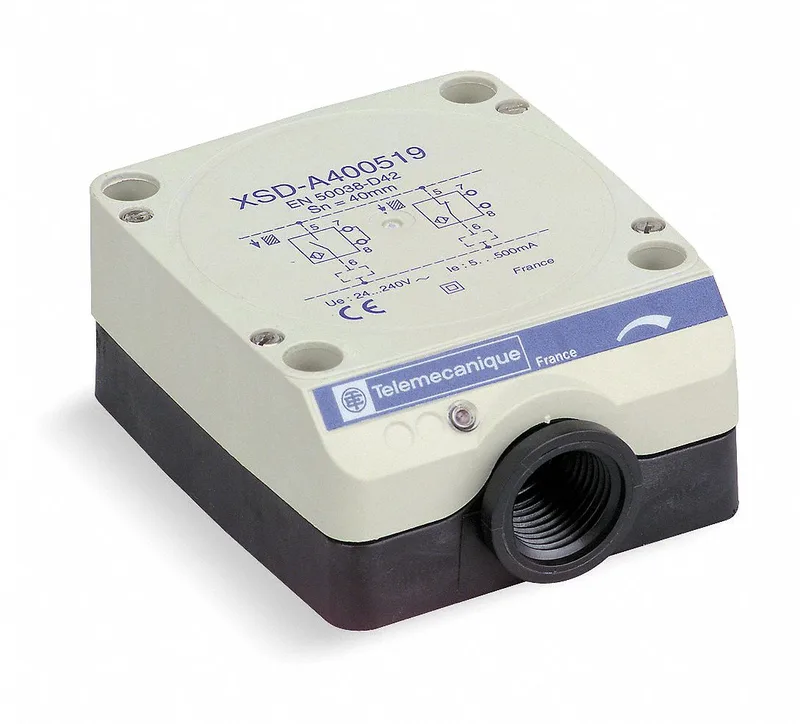

Schneider XSDA400519H7 Inductive Sensor, IP67, 40mm, 12-240V
MPNXSDA400519H7
Schneider Electric XSD series, inductive proximity sensor, IP67, rectangular plastic body 80x80x40mm, 40mm unshielded sensing range, 12-240VAC supply, 500mA programmable NO/NC output, bare wire 2-wire connection.
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XSD |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 40 mm |
| Parameter | Value |
|---|---|
| Output circuit type | Programmable |
| Parameter | Value |
|---|---|
| Load current, max. | 500 mA |
| Parameter | Value |
|---|---|
| Body material | Plastic |
| Overall width | 80 mm |
| Overall height | 40 mm |
| Overall depth | 80 mm |
| Sensor body style | Rectangular |
| Parameter | Value |
|---|---|
| IP rating | IP67 |
| Operating temperature, max. | 158 °F |
| Operating temperature, min. | -13 °F |
| Parameter | Value |
|---|---|
| Compliance standards | CCC; RoHS |
Product details
Frequently asked questions
What compliance documentation is available for XSDA400519H7?
The sensor carries CCC and RoHS compliance. For full declarations of conformity or material declarations, contact the supplier with your specific requirements — the spec record does not list UL, CSA, or CE marks.
