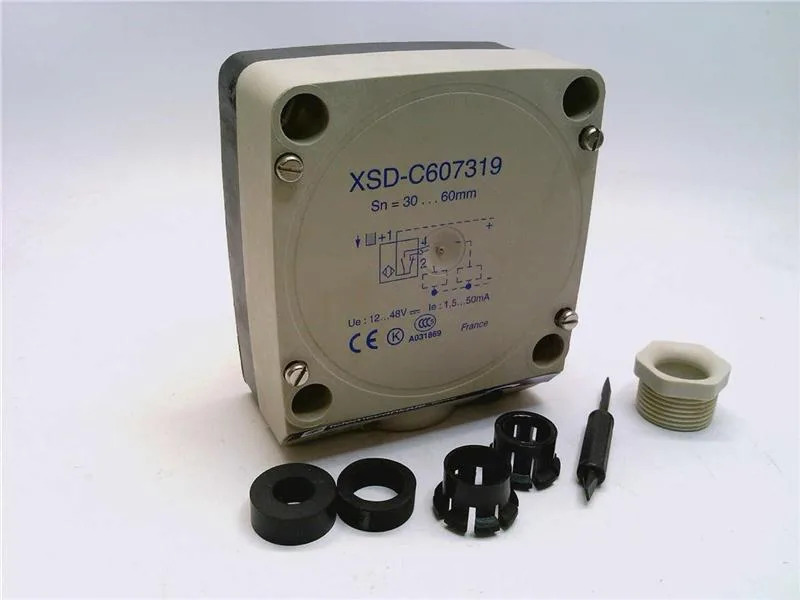

Square D XSDC607319, Telemecanique inductive proximity sensor, block/rectangular, plastic, 60 mm sensing distance, 2-wire NO-NC, screw terminal, 12-48 VDC, IP67, UL/CSA/CE.
| Parameter | Value |
|---|---|
| Sensing distance | 60 MM |
| Switching frequency | 20 HZ |
| Shielding (shielded/unshielded) | UNSHIELDED |
| Sensing position | FRONT |
| Parameter | Value |
|---|---|
| Model | XSD |
| Parameter | Value |
|---|---|
| Operating voltage | 12 TO 48 VDC |
| Parameter | Value |
|---|---|
| Output configuration | NO-NC |
| Number of wires | 2 |
| Connection type | SCREW TERMINAL |
| Parameter | Value |
|---|---|
| Material | PLASTIC |
| Dimensions | 80 MM W X 40 MM D X 100 MM H |
| Parameter | Value |
|---|---|
| Enclosure rating (NEMA/IP) | NEMA 3/4X/12/13, IP67 |
| Operating temperature | -13 TO 158 DEG F |
| Parameter | Value |
|---|---|
| Approvals | UL, CSA, CE |
The XSDC607319: Operating from 12 to 48 VDC, the 2-wire screw-terminal sensor switches loads up to 100 mA at 20 Hz. The IP67 enclosure also meets NEMA 3/4X/12/13, so it's at home in washdown or dusty environments, indoors or out.
UL, CSA, and CE markings are on the nameplate. The California Proposition 65 warning references DINP and DIDP in the plastic material — standard for this housing type.
The UPC listed is 78590123662.
It measures 80 mm wide by 40 mm deep by 100 mm high.
It is UL, CSA, and CE approved, and includes a California Proposition 65 warning for DINP and DIDP.
