The Telemecanique XU2M18MC230KT is the emitter half of an XU2 series through-beam photoelectric sensor. It gives a 15 m sensing distance across an air gap, running on 24 to 240 VAC/VDC. That wide supply range means it drops into existing control circuits without a dedicated power supply — handy for retrofit work where the panel voltage isn’t standardized. Housing is nickel-plated brass (IP67), with a PMMA lens. The connector is a 1/2-20 UNF 3-pin micro male — common on photoelectric sensors in North American installations. Two-wire operation; select light-on or dark-on via the operating mode switch. Approvals include UL, CSA, and CE, so it clears most plant specifications without a waiver.

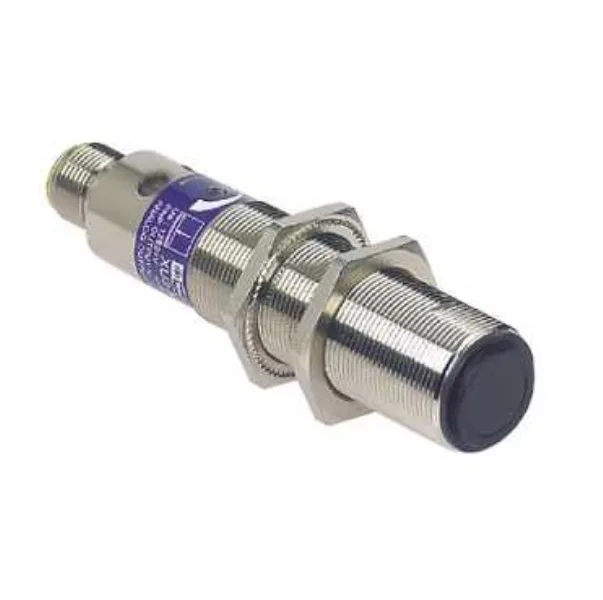

Telemecanique XU2M18MC230KT Photoelectric Sensor, 15 m, IP67
MPNXU2M18MC230KT
Telemecanique XU2M18MC230KT, emitter for XU2 series through-beam photoelectric sensor, 15 m sensing range, 24-240 VAC/VDC, IP67, metal housing.
$48.26Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Model | XU2 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 15 M |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage range | 24 TO 240 VAC/VDC |
Connection
| Parameter | Value |
|---|---|
| Connection type | 1/2 INCH-20 TPI UNF 3 PIN MICRO MALE CONNECTOR |
Environmental
| Parameter | Value |
|---|---|
| Enclosure | IP67 |
| Operating temperature range | -13 TO 131 DEG F |
Mechanical
| Parameter | Value |
|---|---|
| Material | METAL |
Product details
Frequently asked questions
What is XU2M18MC230KT's listed UPC?
The listed UPC is 78590140029.
What is XU2M18MC230KT's model number?
The model is XU2.
What compliance approvals does XU2M18MC230KT carry?
It has UL, CSA, and CE approvals.
MPN
XU2M18MC230KT
