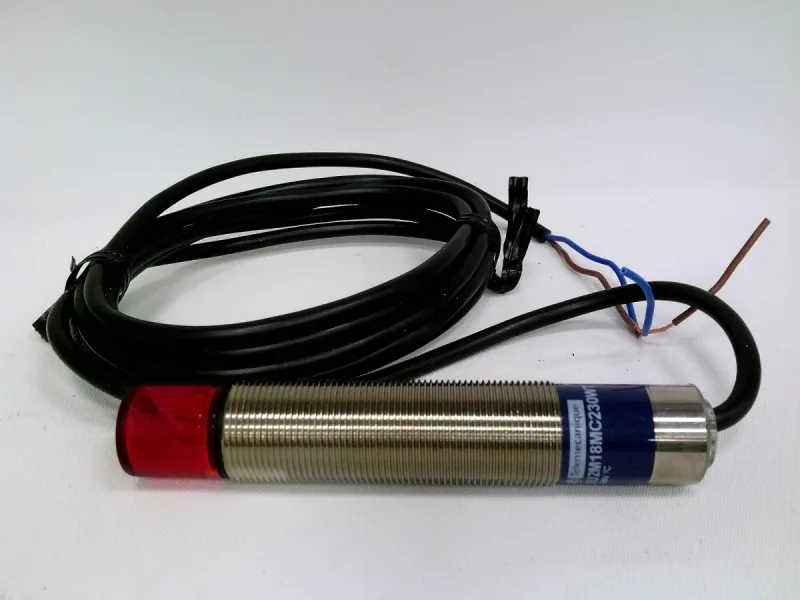

Telemecanique XU2M18MC230WT, M18 tubular photoelectric sensor, cable connection, 0.23 kg.
| Parameter | Value |
|---|---|
| Weight | 0.23 kgs |
The XU2M18MC230WT is a tubular M18 photoelectric sensor from Telemecanique's XU2 series, fitted with a cable connection rather than the 1/2-20 UNF 3-pin micro connector found on the XU2M18MC230KT variant. This makes it a direct physical swap for the same mounting hole, but wiring requires terminating the cable or adapting to the connector footprint.
The housing is identical M18 threaded nickel-plated brass, so it mounts in the same hole. The difference is the electrical connection: the WT has a cable, the KT has a 1/2-20 UNF 3-pin micro connector. To retrofit, either route and terminate the cable, or use a connector-to-cable adapter.
The WT has a cable connection; the KT has a 1/2-20 UNF 3-pin micro male connector. All other specs (M18 housing, IP67, 24–240 VAC/VDC) are shared.
