Diffuse sensor with universal supply and relay output

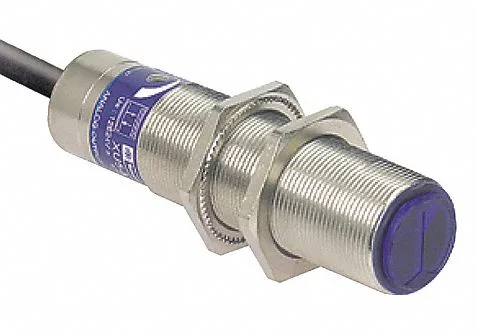

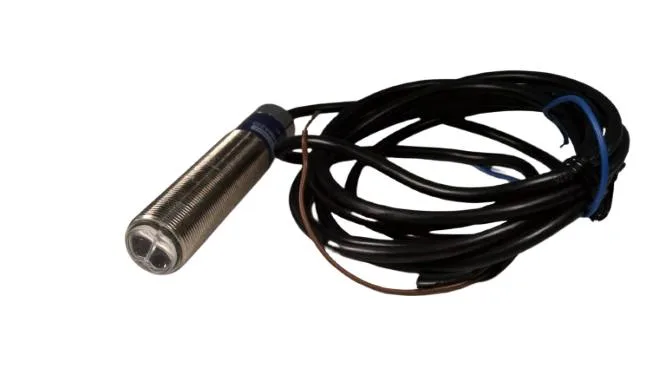

The XU8M18MA230: This M18 threaded cylindrical sensor uses diffuse sensing (dark-on switching) with a PMMA lens and sensitivity adjustment. It operates on any supply from 24 up to 240 V AC or DC, so it drops into panels without worrying about control voltage. The relay output (1NO, 200 mA max load) switches directly, no amplifier needed. Housed in a brass body rated IP67; prewired with a 2-meter cable. Sensing range is 100 mm; switching frequency 25 Hz.
Compliance and documentation
Carries CE, CSA, IEC 60529, RoHS, and UL Listing, so compliance paperwork for machine export or safety audits is available. Operating temperature range -13 to 131 °F.
