The XU8M18MA230W is an active Telemecanique tubular photoelectric sensor with background rejection, rated for 24–240 VAC/VDC and a 12 cm sensing distance. Its nickel-plated brass housing meets NEMA 4X/12 and IP67, making it suitable for washdown or wet locations. The 2-wire design with 2 m PVR cable simplifies wiring in control panels; the 200 mA maximum load current and 25 Hz switching frequency define its output capability for direct load switching. Rated for light operate mode only, with a 20 ms response time on/off. The 18 mm threaded barrel and side sensing position (90°) suit fixed-mount applications where space is tight.

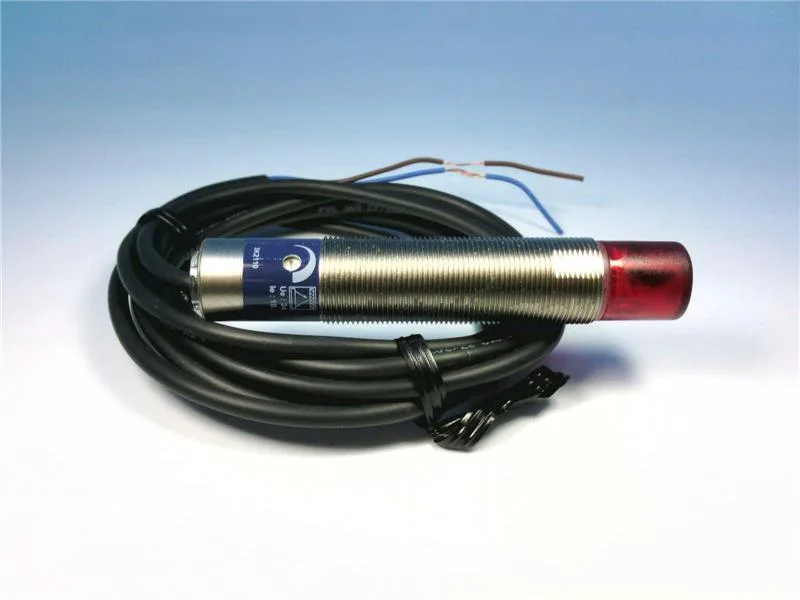

Telemecanique XU8M18MA230W Photo Sensor, 12cm, 24-240V
MPNXU8M18MA230W
Telemecanique XU8M18MA230W, 18 mm tubular background rejection photoelectric sensor, 12 cm range, 24–240 VAC/VDC, 2-wire, 2 m cable, metal housing, NEMA 4X/12 IP67.
$53.34Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Model | XU8 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 12 CM |
| Response time | 20 MILLISECOND (ON/OFF) |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage range | 24 TO 240 VAC/VDC |
Connection
| Parameter | Value |
|---|---|
| Connection type | 2 M PVR CABLE |
Environmental
| Parameter | Value |
|---|---|
| Enclosure | NEMA 4X/12, IP67 |
Mechanical
| Parameter | Value |
|---|---|
| Material | METAL |
Product details
Frequently asked questions
What is XU8M18MA230W's listed UPC?
The UPC is 78590189613.
What is XU8M18MA230W's listed model?
The model is XU8.
What compliance documentation does this sensor have?
It carries UL, CSA, and CE approvals.
MPN
XU8M18MA230W
