Schneider Electric XU9M18MA230K — Photoelectric Sensors

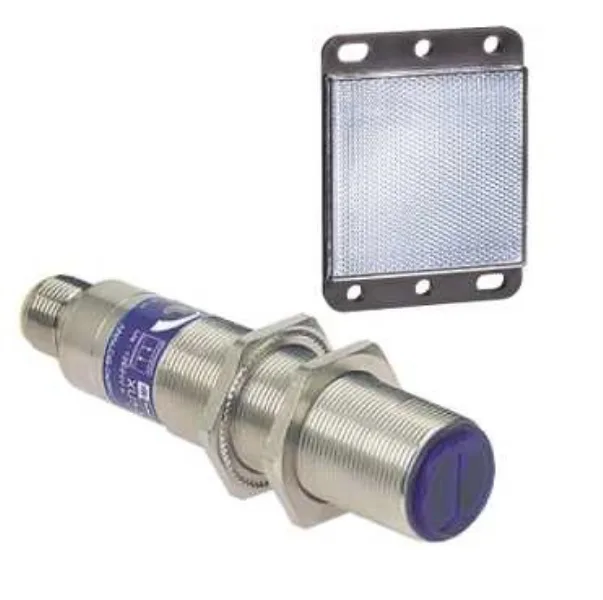

XU9M18MA230K Telemecanique Photoelectric Sensor, 3m, IP67

MPNXU9M18MA230K

Telemecanique XU9M18MA230K, Polarized Retroreflective Photoelectric Sensor, 18mm barrel, 3m sensing distance, IP67, 24–240 VAC/VDC.

$46.99Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

XU9M18MA230K — Sensing
ParameterValue
TypePolarized Retroreflective
Sensing distance3 M
Response time20 Millisecond
XU9M18MA230K — Electrical
ParameterValue
Operating voltage range24 to 240 VAC/VDC
XU9M18MA230K — Output
ParameterValue
Output configurationSolid State Transistor
Load current10 to 200 Milliampere
XU9M18MA230K — Connection
ParameterValue
Connection type1/2 Inch-20 UNF
XU9M18MA230K — Environmental
ParameterValue
EnclosureIP67
Operating temperature range-25 to 55 Deg C
XU9M18MA230K — Mechanical
ParameterValue
MaterialNickel Plated Brass Enclosure, PVR Insulation, PMMA Lens

Product details

This Telemecanique XU9M18MA230K is a current-production polarized retroreflective photoelectric sensor in an 18 mm nickel-plated brass barrel. It throws a 3 m sensing beam and runs on anything from 24 to 240 VAC or VDC, so you don't need separate supply rails for AC and DC panels. Output is a solid-state transistor switching 10–200 mA, with a 20 ms response. The IP67 enclosure means it survives washdown and dust. Approvals: UL, CSA, CE — covers most North American and European installs. RoHS compliant; no extra compliance legwork.

UPC 78590130126 ties to this exact variant. If you're sorting a liquidation pallet, that's the number to cross against manifests or old MRO bins.

Frequently asked questions

What is the sensor type and sensing distance?

Polarized retroreflective type with a 3 m sensing distance.

What compliance documentation is available?

UL, CSA, CE approvals and RoHS compliance are listed.

What is the UPC for this part?

UPC 78590130126.

MPN
XU9M18MA230K
