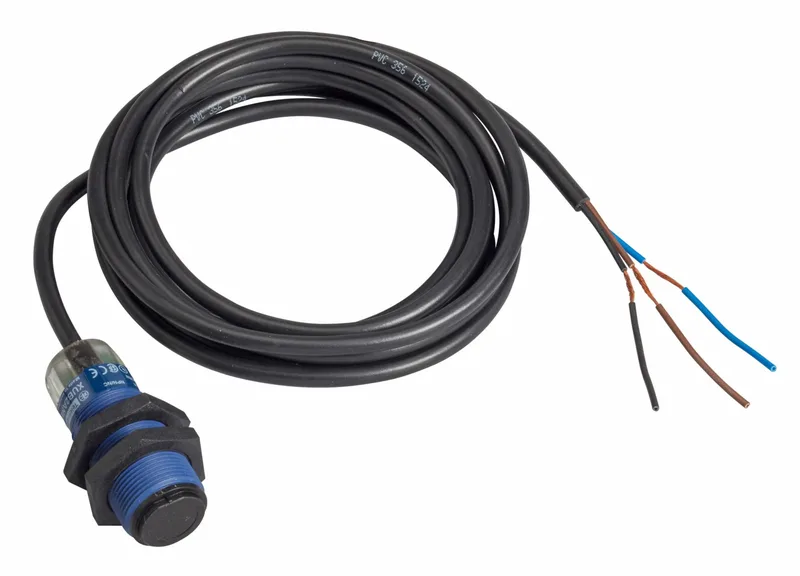

The XUB1APANL2: Fits a standard M18 mounting hole or bracket. Straight-faced barrel, 18 mm diameter, 46 mm long. Pre-wired with 2 m of bare-wire cable — strip and land. Dark-on mode means the output is on when the beam is broken, typical for presence detection. Response time is 1 ms, fine for moderate-speed conveyor or packaging lines.
Telemecanique XUB1APANL2 Retroreflective Sensor, M18, 4m
MPNXUB1APANL2
Telemecanique Sensors XU Series Photoelectric Sensor, Retroreflective, M18 Threaded, PNP, 12-24V DC, 4 m Sensing Distance.
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XU |
| Parameter | Value |
|---|---|
| Sensing method | Retroreflective |
| Response time | 1 msec |
| Parameter | Value |
|---|---|
| Supply voltage | 12-24V DC |
| Parameter | Value |
|---|---|
| IP rating | IP65; IP67 |
| Operating temperature, max. | 131 °F |
| Parameter | Value |
|---|---|
| Body material | PBT |
| Parameter | Value |
|---|---|
| Standards / approvals | CE; CSA; IEC 60529; RoHS; UL Listed |
Product details
Frequently asked questions
What series does the XUB1APANL2 belong to?
It is part of the XU series from Telemecanique Sensors.
What built-in protections does this sensor have?
It includes output reverse polarity protection, output short-circuit protection, and a surge suppressor.
What compliance standards does the XUB1APANL2 meet?
It is CE, CSA, IEC 60529, RoHS, and UL Listed.
MPN
XUB1APANL2
