Schneider Electric XUB2ANBNM12R — Photoelectric Sensors

Telemecanique XUB2ANBNM12R NPN NC Through-Beam 15m

MPNXUB2ANBNM12R

Telemecanique XUB series, XUB2ANBNM12R, tubular photoelectric through-beam sensor, NPN NC, 15m sensing distance, M12 4-pin connector, IP67, UL/CSA/CE.

$17.78Ref. price · indicative, final on quote
Schneider Electric XUB2ANBNM12R datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XUB2ANBNM12R — Identification
ParameterValue
ModelXUB
XUB2ANBNM12R — Sensing
ParameterValue
Sensing distance15 M
Response time1 MILLISECOND (ON/OFF)
XUB2ANBNM12R — Electrical
ParameterValue
Operating voltage range12 TO 24 VDC
XUB2ANBNM12R — Connection
ParameterValue
Connection typeM12 4 PIN DC MICRO MALE CONNECTOR
XUB2ANBNM12R — Environmental
ParameterValue
EnclosureNEMA 4X/12, IP67
XUB2ANBNM12R — Mechanical
ParameterValue
MaterialPBT

Product details

What this sensor does for your BOM line

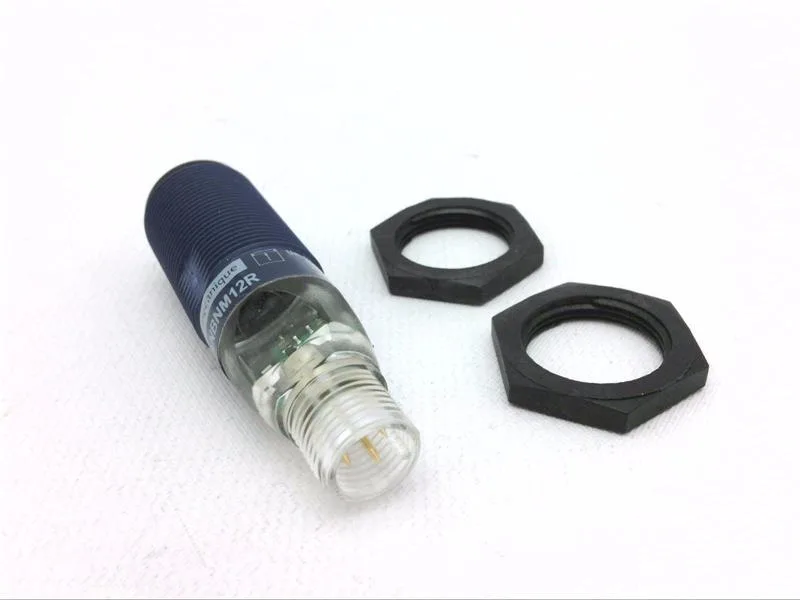

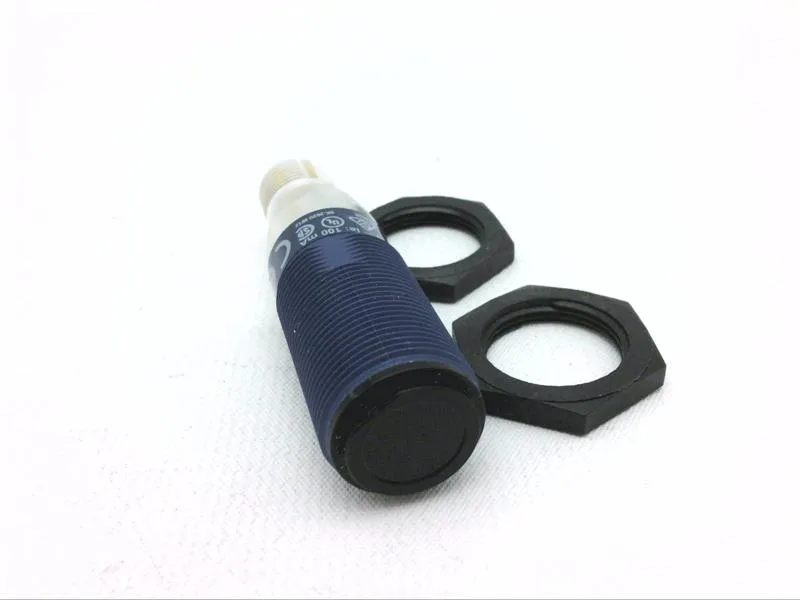

The XUB2ANBNM12R is a 15 m through-beam photoelectric sensor with an NPN normally-closed output. It fires a beam across a gap; when the beam is blocked, the output opens. That NC logic is common for fail-safe detection where a broken wire or lost power drops the output safe. It's rated for 100 mA continuous load at 12-24 VDC, with a 1 ms on/off response time. The housing is a threaded PBT barrel with a PMMA lens, IP67 and NEMA 4X/12 rated. Comes with an M12 4-pin male connector fixed. Three wires — typical brown (V+), blue (V-), black (output). Includes the mounting nut.

NPN vs PNP — which output fits your panel

Physical dimensions and connector are identical across the XUB family — same thread, same 15 m range, same M12 pinout. Only the output stage differs.

Production status and sourcing

Approvals in-hand: UL, CSA, CE. No PCN on file yet.

Mounting and wiring quick check

IP67 rated — fine for wash-down areas and outdoors as long as the connector is properly mated. NEMA 4X/12 covers indoor dust and dripping water.

Frequently asked questions

When sourcing XUB2ANBNM12R, what's the closest functional second-source — XUB2APANM12R?

XUB2APANM12R is PNP normally-open, not a direct functional second-source for this NPN NC unit. If you need a PNP version, XUB2APBNM12R matches the NC logic with PNP output.

What is XUB2ANBNM12R's listed UPC (78590181976)?

The UPC listed for this part is 78590181976.

What is XUB2ANBNM12R's listed model (XUB) on this component line?

The model is XUB, indicating the XUB series of tubular photoelectric sensors.

Will XUB2ANBNM12R drop into a panel that was specified around XUB2APANM12R without rewiring?

Physically yes (same barrel and connector), but electrically no — the output type (NPN vs PNP) and logic (NC vs NO) differ. Rewiring the load and possibly changing PLC input configuration is required.

What compliance documentation does this brand provide for XUB2ANBNM12R (RoHS, REACH, UL, IEC)?

The part carries UL, CSA, and CE approvals per the specifications.
