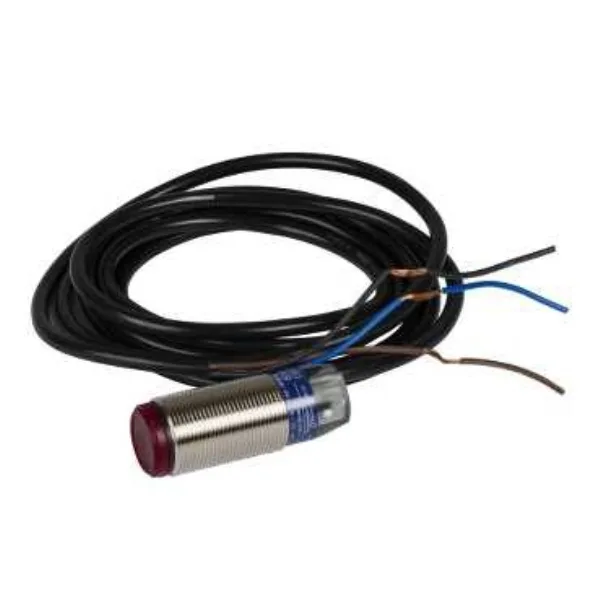

The Telemecanique XUB2BKSNL2T is an 18 mm tubular through-beam photoelectric emitter from the XUB series, rated for a 15 m sensing distance between emitter and receiver. It operates on 12 to 24 VDC and switches in 1 millisecond — fast enough for counting or position detection on moderate-speed conveyor lines. The nickel-plated brass housing carries an IP67 / NEMA 4X/12 enclosure rating, so the sensor body and optics tolerate washdown environments and outdoor exposure without additional shrouding. Approvals include UL, CSA, and CE, covering installations in North American and European control panels.
Wired with a 2 m PVR cable (3-wire), the XUB2BKSNL2T connects directly to a 12–24 VDC control supply. The 1 ms response time means the sensor can detect objects passing at line speeds up to roughly 15 m/s, assuming a minimum object size that breaks the beam cleanly. For most discrete-part handling, that's ample margin. Because this is the emitter half of a through-beam pair, it requires a separate receiver (same series) to complete the sensing circuit. The 15 m range suits long-axis detection across conveyor gaps, automated guided vehicle paths, or entry/exit zones in material handling.
