Sensor Description and Key Ratings

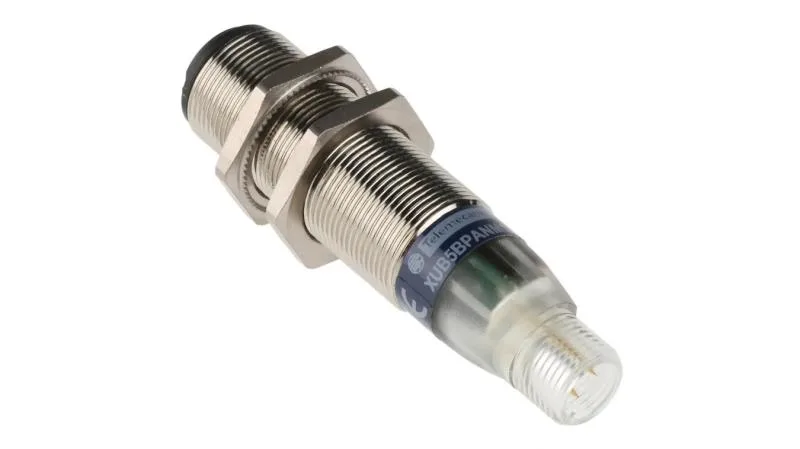

The Telemecanique XUB5BPANM12 is a current-production adjustable proximity diffuse photoelectric sensor with an 18 mm nickel-plated brass threaded barrel. It delivers a 23.6 Inch sensing distance using an infrared beam, with a PNP (NO) output switching at 100 mA from a 12 to 24 VDC supply. Response time is 1 millisecond on/off, and the sensor operates at 500 Hz, with a yellow LED indicating output status. The 4-pin M12 micro connector simplifies field wiring for three-wire PNP circuits. Enclosure is NEMA 4X/12 and IP67, certified to UL, CSA, and CE. Operating temperature range is -13 to 131 °F.
