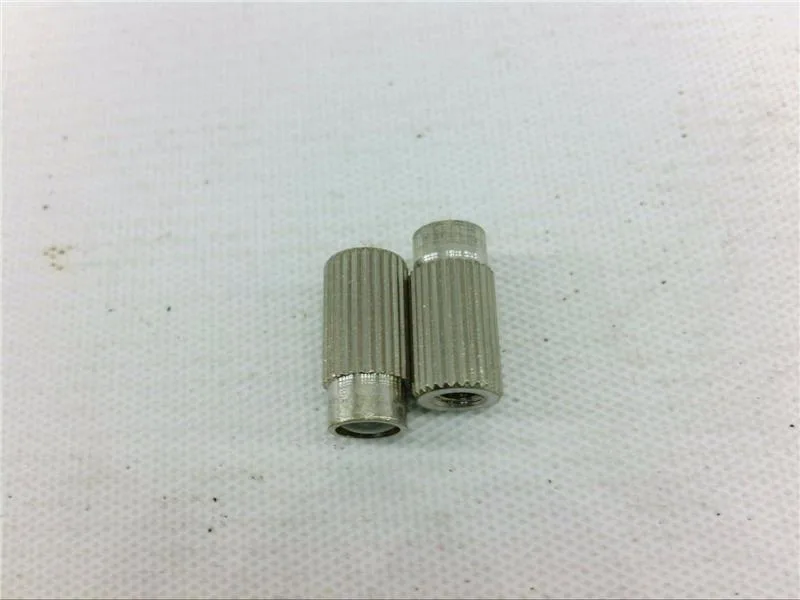

The Telemecanique XUFZ01 is an amplifying lens fiber designed for the OSIRIS[T] photoelectric sensor family. It's a standard threaded accessory that boosts the sensor's optical reach — 10X magnification on a 5 mm lens diameter, producing a 4.5 mm beam. This isn't a standalone sensor; it's the front-end optic that screws onto the sensor head to focus or amplify the light path.
The 5 mm lens diameter and 4.5 mm beam diameter tell you the optical aperture — tight enough for small-target detection or retroreflective setups where you need a concentrated beam. The 10X magnification means the lens effectively extends the sensing range of the OSIRIS base sensor, though the exact range depends on the sensor model and target reflectivity. The standard threaded form factor (5 mm dia x 10 mm length) means it threads directly into the OSIRIS sensor head — no adapter ring needed. This is a mechanical fit check: if your existing OSIRIS sensor accepts this thread pattern, the XUFZ01 drops in.
Compliance Note
The XUFZ01 carries a California Proposition 65 warning for Diisononyl phthalate (DINP) and Di-isodecyl phthalate (DIDP). This is a standard material-content disclosure for products sold into California; it doesn't affect functional fit or performance. No UL, CSA, or CE marks are listed on this accessory — the host OSIRIS sensor carries those approvals.
