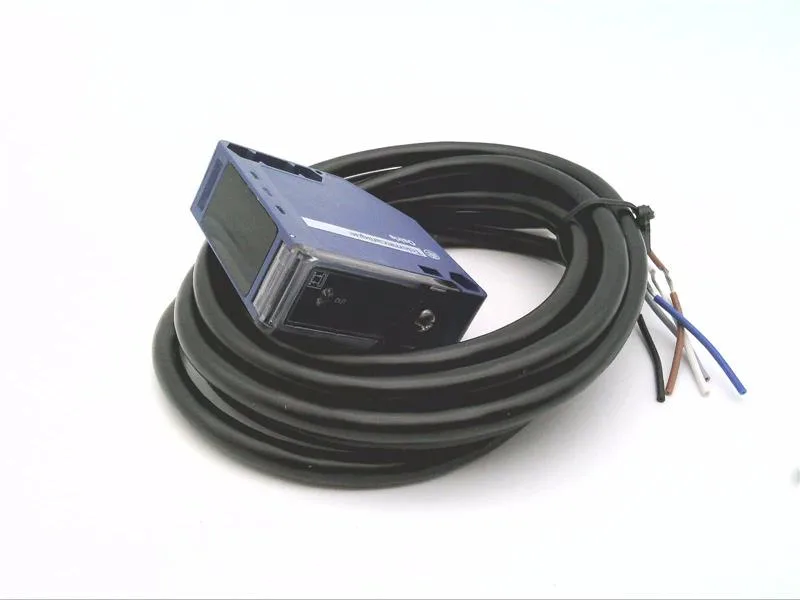

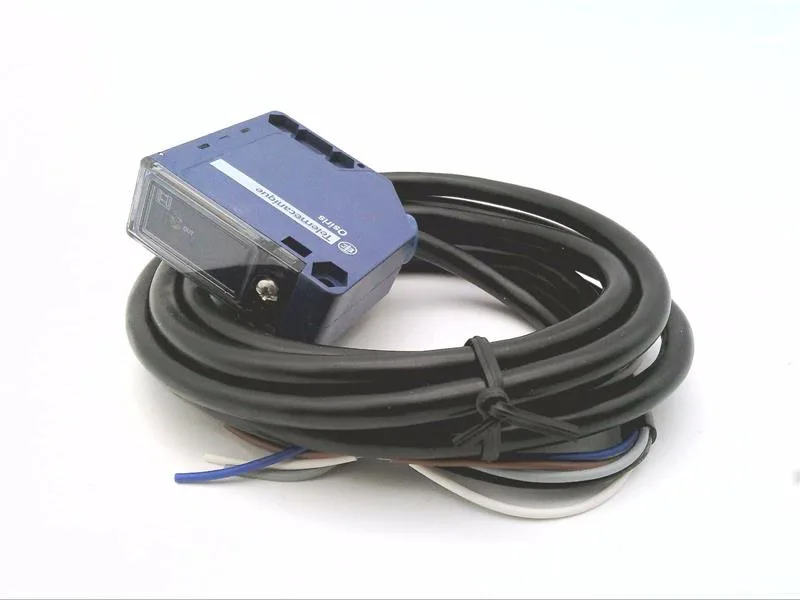

Schneider Electric XUK1ARCNL2 — Photoelectric Sensors

XUK1ARCNL2 - Telemecanique Retroreflective Sensor, 7m, 20-24

MPNXUK1ARCNL2

Telemecanique XUK1ARCNL2 retroreflective photoelectric sensor, 7 m range, 20 to 240 VAC/VDC supply, NO/NC relay output, IP65/NEMA 4/4X/12/13 enclosure.

$36.83Ref. price · indicative, final on quote
Schneider Electric XUK1ARCNL2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XUK1ARCNL2 — Identification
ParameterValue
ModelXUK
XUK1ARCNL2 — Sensing
ParameterValue
TypeRetroreflective
Sensing distance7 M
Response time25 Millisec
XUK1ARCNL2 — Electrical
ParameterValue
Operating voltage range20 to 240 VAC/VDC
XUK1ARCNL2 — Output
ParameterValue
Output configurationNO/NC, 5-Wire
Load current3 Ampere
XUK1ARCNL2 — Connection
ParameterValue
Connection type2 M PVR Cable
XUK1ARCNL2 — Environmental
ParameterValue
EnclosureNEMA 4/4X/12/13, IP65
Operating temperature range-13 to 131 Deg F
XUK1ARCNL2 — Mechanical
ParameterValue
Body materialPBT

Product details

Telemecanique XUK1ARCNL2 retroreflective sensor, 7 m range, 3 A relay output, 20 to 240 VAC/VDC supply. Output is NO/NC configurable via the five-wire cable (2 m PVR). The 25 ms response is fine for conveyor presence and part-in-place checks; for high-speed counting look at a faster sibling. Enclosure is NEMA 4/4X/12/13 and IP65 — hose-down tolerant but not submersible. Body is PBT, which shrugs off most oils and mild chemicals.

Panel-fit notes

The 2 m PVR cable and LED indicators (yellow output, red stability) aid alignment; 20 Hz operating frequency limits high-speed counting.

Frequently asked questions

When sourcing XUK1ARCNL2, what is the closest functional second-source — XUKT1KSML2?

XUKT1KSML2 is a polarized retroreflective sensor with a shorter 1.5 m range, 12–24 VDC supply, and PNP/NPN transistor output. It is not a direct second-source due to different wiring, voltage, and detection principle. For a true alternative, the XUK1ARCNL2 should be matched by its universal AC/DC supply and relay output.

What is XUK1ARCNL2's listed UPC?

The UPC is 78590140596.

What is XUK1ARCNL2's listed type?

The type is retroreflective.

Will XUK1ARCNL2 drop into a panel that was specified around XUKT1KSML2 without rewiring?

No. XUK1ARCNL2 uses a five-wire relay output (NO/NC common) on 20–240 VAC/VDC, while XUKT1KSML2 uses a three-wire PNP/NPN transistor output on 12–24 VDC. The wiring, voltage, and detection principle are different. Panel rework would be needed.
