Schneider Electric XUK2APBNL2R — Photoelectric Sensors

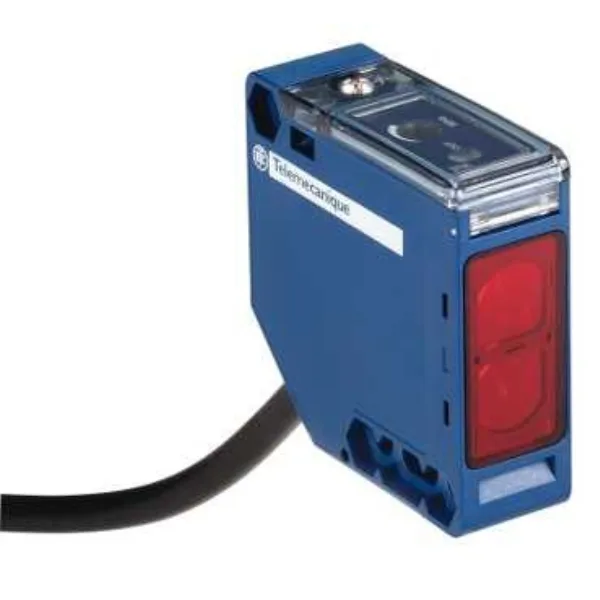

Telemecanique XUK2APBNL2R Photoelectric Sensor, 30m PNP NC

MPNXUK2APBNL2R

Square D / Telemecanique XUK Series sub-compact through-beam photoelectric sensor, PNP normally closed, 30m sensing range, 12-24 VDC, 2m PVR cable, IP65/NEMA 4X.

$30.48Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XUK2APBNL2R — Identification
ParameterValue
ModelXUK
XUK2APBNL2R — Sensing
ParameterValue
Sensing distance30 M
Response time2 MILLISECOND
XUK2APBNL2R — Electrical
ParameterValue
Operating voltage range12 TO 24 VDC
XUK2APBNL2R — Output
ParameterValue
Output configurationPNP, NC
XUK2APBNL2R — Connection
ParameterValue
Connection type2 M PVR CABLE
XUK2APBNL2R — Environmental
ParameterValue
EnclosureNEMA 4/4X/12/13, IP65
XUK2APBNL2R — Mechanical
ParameterValue
MaterialPLASTIC

Product details

The Square D / Telemecanique XUK2APBNL2R is a sub-compact through-beam photoelectric sensor in the XUK series. It gives you a 30m sensing range with a PNP output that is normally closed, and it operates on 12 to 24 VDC. The 2ms response time and 250 Hz switching frequency handle moderate line speeds for part presence or gap detection. The 30m range means this is a through-beam pair – you need a separate emitter and receiver. The IP65 and NEMA 4/4X/12/13 enclosure makes it dust-tight and hose-down resistant, so it holds up in washdown, outdoor, or dusty environments. The 2m PVR cable is a molded pigtail; you'll terminate it in a junction box or run it to a terminal strip.

If you need to cross it to something already in your storeroom, the XUK family shares the same form factor and cable length, but output configurations (PNP vs NPN, light-on vs dark-on) vary by suffix. The XUK2APBNL2R is specifically PNP normally closed; swapping to a different output type means changing wiring logic.

Frequently asked questions

What are the UPC and dimensions for this sensor?

The UPC is 78590194242. The dimensions are 1.9 inches wide by 0.7 inches deep by 1.9 inches high.

What compliance approvals does it carry?

It is approved to UL, CSA, and CE standards.
