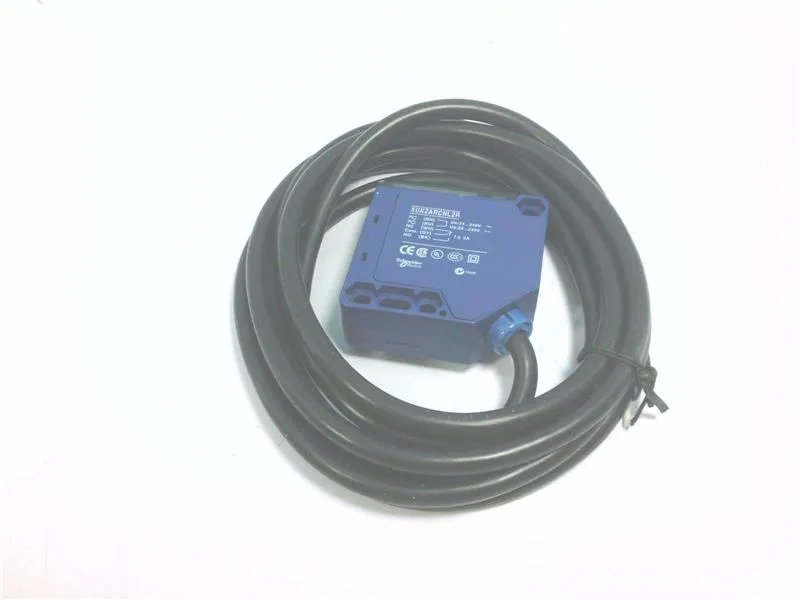

The XUK2ARCNL2R: Rectangular through-beam receiver from the XU family, built for long-range presence detection out to 30 m. The relay output gives you a changeover contact that handles control voltages up to 240 V AC or DC — no separate interface module needed. Supply voltage covers everything from 24 to 240 V AC/DC, so you can run it on whatever control voltage the panel already uses. IP65 and NEMA 4 and 4X rated, with PMMA lens and PBT body. Response time 25 ms, switching frequency 20 Hz. Selectable light-on/dark-on mode with a built-in indicator lets you match the output logic without swapping the unit. Prewired 2 m cable terminates in bare wires, ready for the terminal block.
Telemecanique XUK2ARCNL2R Photoelectric Sensor, IP65, 30m
MPNXUK2ARCNL2R
Telemecanique Series XU, XUK2ARCNL2R, through-beam photoelectric sensor receiver, IP65, 30 m sensing distance, relay output, 24-240 V AC/DC supply.
$33.02Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XU |
Sensing
| Parameter | Value |
|---|---|
| Sensing method | Through-Beam |
| Response time | 25 msec |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24-240V AC & 24-240V DC |
Environmental
| Parameter | Value |
|---|---|
| IP rating | IP65 |
| Operating temperature, max. | 131 °F |
Mechanical
| Parameter | Value |
|---|---|
| Body material | PBT |
Approvals
| Parameter | Value |
|---|---|
| Standards / approvals | CE; CSA; IEC 60529; RoHS; UL Listed |
Product details
Frequently asked questions
Will it drop into a panel that used XU2M18MB230 without rewiring?
No. The XUK2 is a rectangular body with a relay output and 4-wire (1NO/1NC) circuit, while the XU2M18MB230 is a tubular 2-wire solid-state sensor. Expect different mounting, wiring, and load circuit — a full rework.
What compliance documentation does this sensor carry?
CE, CSA, RoHS, and UL Listed. It also meets IEC 60529 for enclosure protection.
MPN
XUK2ARCNL2R
