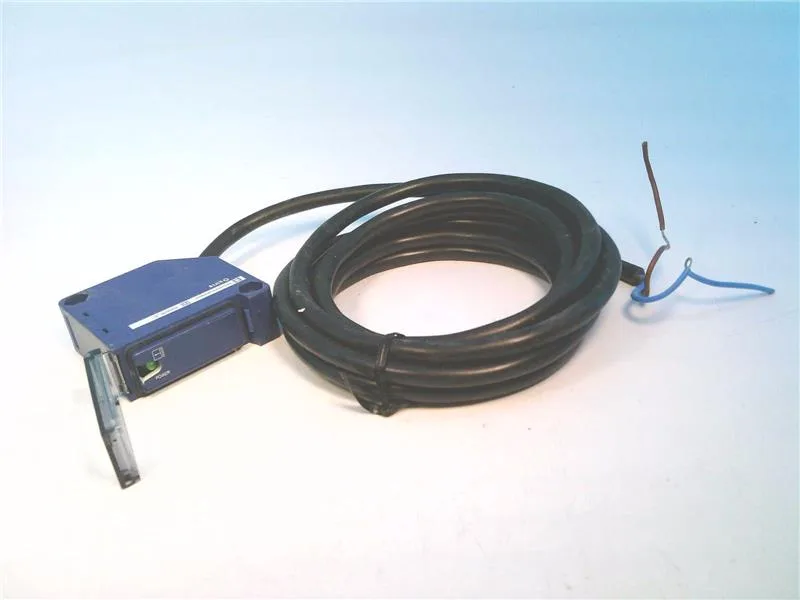

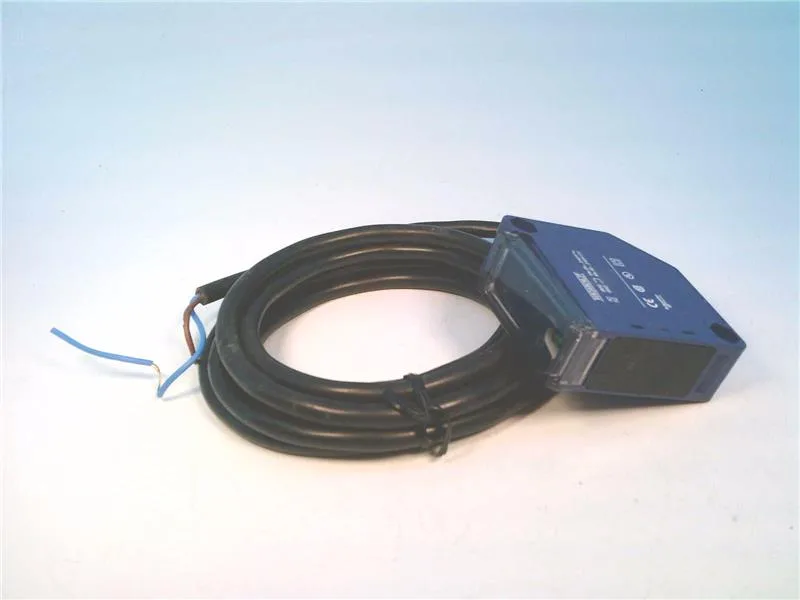

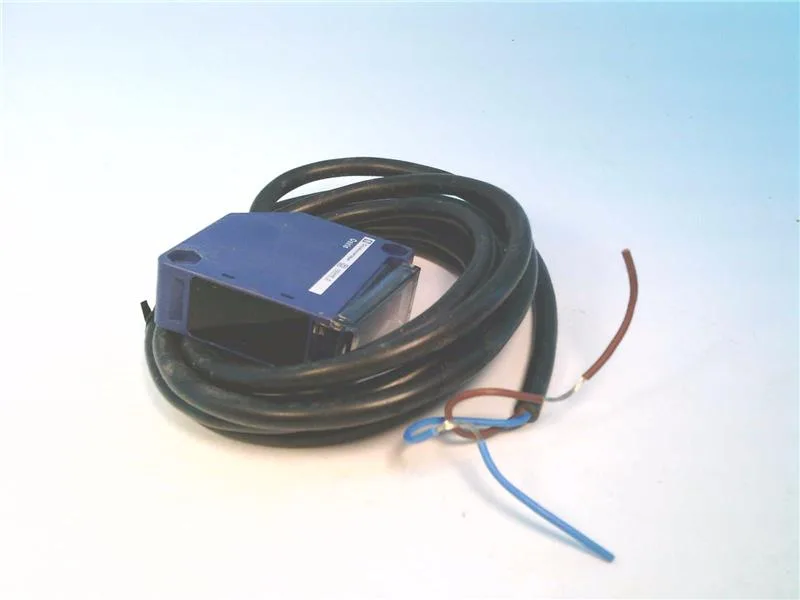

Mounts with M4 screws through the 50 x 50 mm face. 2 m bare-wire cable exits at a right angle — plan for a PG9 or equivalent gland if routing through a panel knockout. Response time is 25 ms, switching frequency 250 Hz; fine for conveyor belts or part detection at moderate speeds. The relay outputs are rated for general-purpose loads up to the listed contact rating (watch the maximum switching current — not stated here, so verify against your load before committing). Indicator lights on top give immediate state feedback at startup.
XUK2ARCNL2T Square D Photoelectric Sensor, 30m, 24-240V AC/D
MPNXUK2ARCNL2T

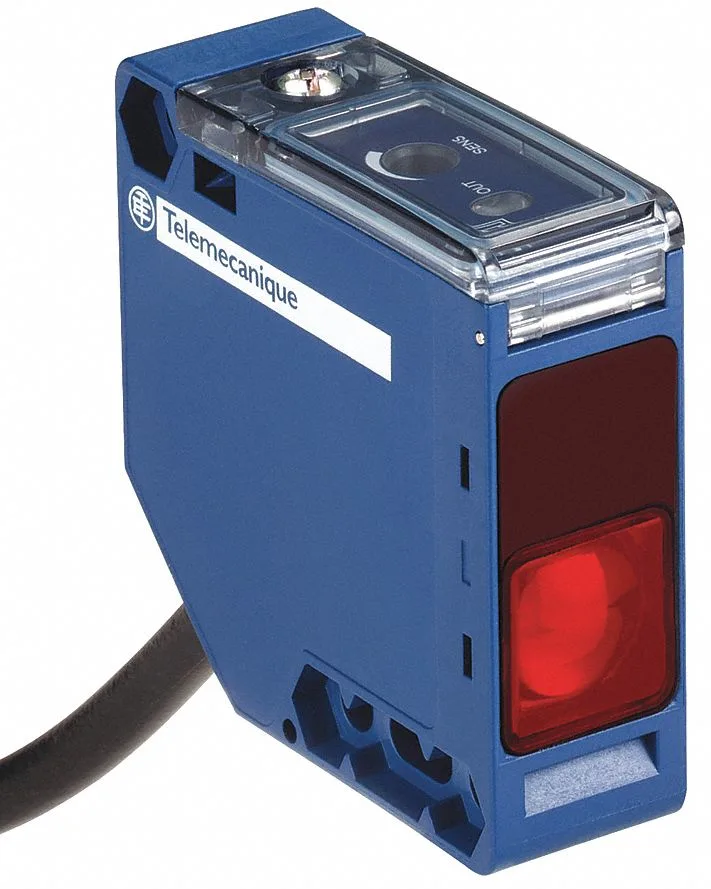

Square D / Telemecanique XU series, through-beam photoelectric sensor transmitter, 30 m range, 24-240 V AC/DC, IP65, 2 m prewired cable.
$26.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XU |
Sensing
| Parameter | Value |
|---|---|
| Sensing method | Through-Beam |
| Response time | 25 msec |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24-240V AC & 24-240V DC |
Environmental
| Parameter | Value |
|---|---|
| IP rating | IP65 |
| Operating temperature, max. | 131 °F |
Mechanical
| Parameter | Value |
|---|---|
| Body material | PBT |
Approvals
| Parameter | Value |
|---|---|
| Standards / approvals | CE; CSA; IEC 60529; RoHS; UL Listed |
Product details
Frequently asked questions
Will XUK2ARCNL2T drop into a panel that was specified around XU2M18MB230 without rewiring?
No. XU2M18MB230 is a tubular M18 body with a 2-wire cable; XUK2ARCNL2T is a rectangular 50 x 50 mm block with a 4-wire (1NO/1NC) cable. Different footprint and different wiring—requires panel adapter or enclosure change.
What compliance documentation does this brand provide for XUK2ARCNL2T?
Listed standards include CE, CSA, IEC 60529, RoHS, and UL Listing. No REACH declaration is explicitly mentioned in the spec record.
What is XUK2ARCNL2T's listed series on this component line?
Series XU.
What is XUK2ARCNL2T's listed features?
PMMA lens material.
