Sensor fit and output logic

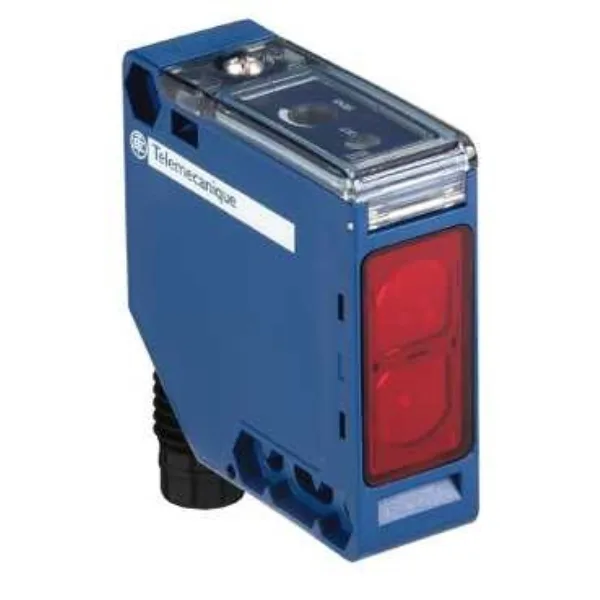

The XUK5APBNM12 is a proximity diffuse photoelectric sensor in a rectangular block format, with a 1 m sensing range on a 12 to 24 VDC supply. Output is PNP normally closed, 3-wire, rated 100 mA load. Switching response is 2 ms, with selectable ON and OFF delays through the solid-state output logic. The 4-pin micro DC connector (M12) means the sensor mates with standard industrial quick-disconnect cables – no hardwiring into the head. Body material is PBT, sealed to NEMA 4/4X/12/13 and IP65. Yellow output and red stability LEDs give on-sight status without a multimeter.
Not a drop-in for the retroreflective sibling
Within the diffuse class, the tubular XUAH0525 (8 mm barrel, 1.9 in range, 2 m cable, PNP NC) shares the same output logic but is mechanically incompatible – it requires a hole mount and a different connector. No panel retrofit without rework.
