Telemecanique XUK Series, Photoelectric Sensor, Diffuse, 24-240V AC/DC, NPN plus PNP, 1.5 m sensing distance, 18 mm width, prewired cable.
| Parameter | Value |
|---|---|
| Series | XUK |
| Parameter | Value |
|---|---|
| Sensing method | Diffuse |
| Response time | 25 msec |
| Parameter | Value |
|---|---|
| Supply voltage | 24-240V AC & 24-240V DC |
| Parameter | Value |
|---|---|
| IP rating | IP65 |
| Operating temperature, max. | 131 °F |
| Parameter | Value |
|---|---|
| Body material | Plastic |
| Parameter | Value |
|---|---|
| Standards / approvals | CE; Ecolab |

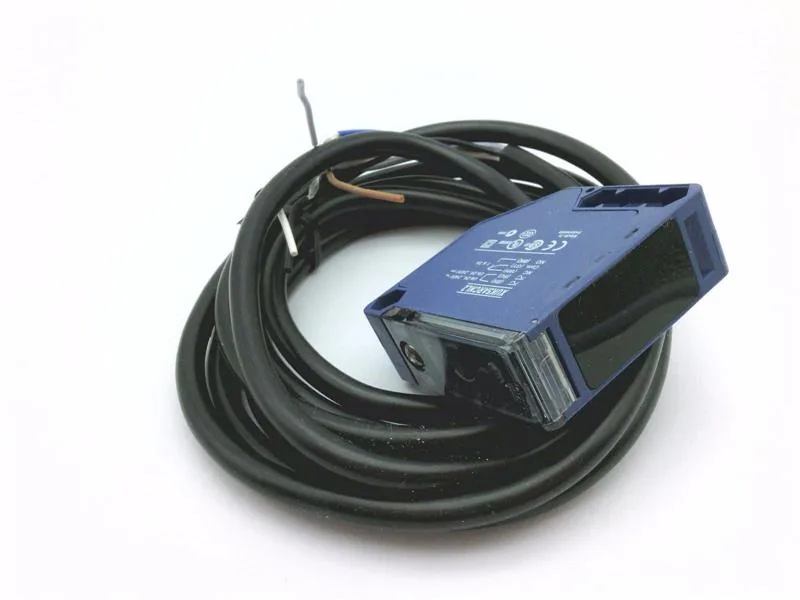

The Telemecanique XUK5ARCNL2 is a rectangular photoelectric diffuse sensor from the XUK series, rated IP65 with CE and Ecolab certification. It senses objects up to 1.5 m using infrared light, with background suppression and a mechanical display of the setting. Supply is universal—24-240 V AC or DC—so it fits panels with mixed control voltages. Output is both NPN and PNP on a single 3-wire, 2 m prewired cable, configured as 1NO/1NC contact form.
It carries CE and Ecolab certification. No RoHS, REACH, or UL is listed in the specifications.
No. The XURK1KSMM12 runs on 12-24 V DC only and uses an M12 connector; the XUK5ARCNL2 runs on 24-240 V AC/DC with a bare-wire cable. Supply voltage and termination are different, requiring a power rail change and rewiring.
