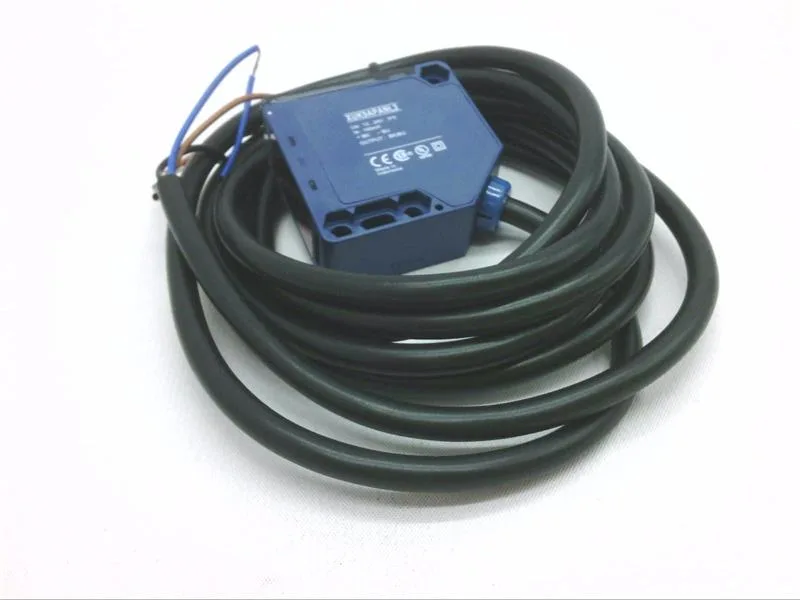

The Telemecanique XUK9APANL2 is a rectangular plastic polarized retroreflective photoelectric sensor with a 5 m sensing distance, outputting PNP normally open on a 3-wire cable. It runs on 12 to 24 VDC and switches up to 100 mA loads with a 2 ms response. Rated NEMA 4/4X/12/13 and IP65, it handles washdown and dusty environments in material handling or packaging lines. Approvals UL, CSA, and CE are on the nameplate.
Mounting and wiring notes
Rectangular 50x50 mm body with a 2 m prewired cable — gland plate entry or cable gland is required. PNP NO output means it sources current to the load when light path is broken; verify PLC input sink/source compatibility. Operates -13 to 131°F; no derating published for the IP65 seal at temperature extremes. Yellow output LED, red stability LED, green power/teach LED give live diagnostic without a scope.
