The Telemecanique XULK0830 is a through-beam photoelectric emitter — the light-source half of a through-beam sensor pair. It projects an infrared beam up to 8 m. Runs on 12-24 VDC and draws 35 mA through the 2 m, 2-wire cable. The IP67 plastic housing withstands dust and wash-down environments. Because this is an emitter only, a separate receiver unit is required to complete the detection pair. Verifying the receiver’s output configuration and compatibility before ordering saves a second sourcing round.

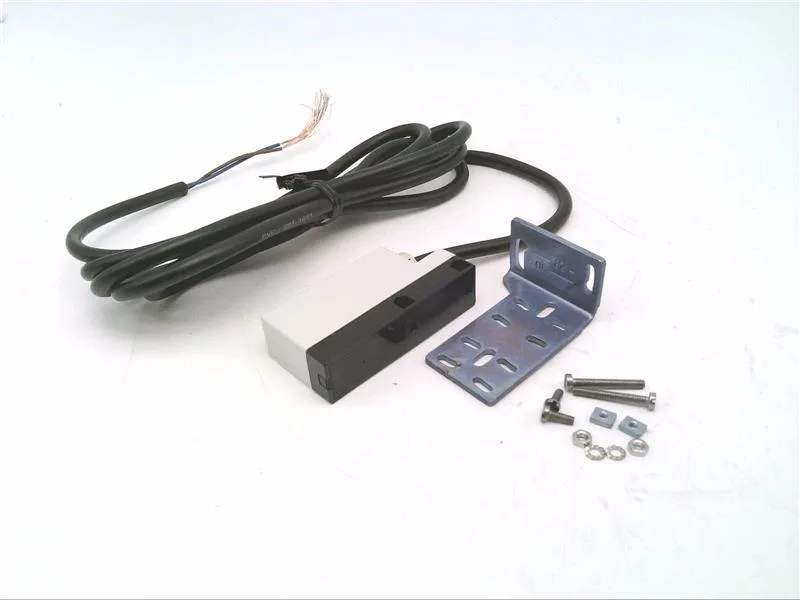

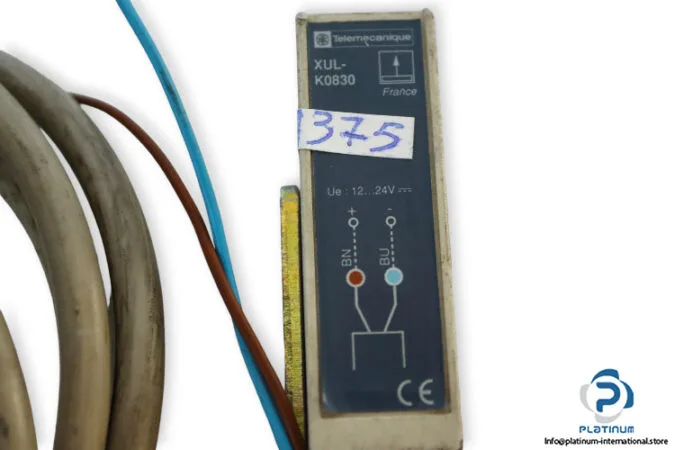

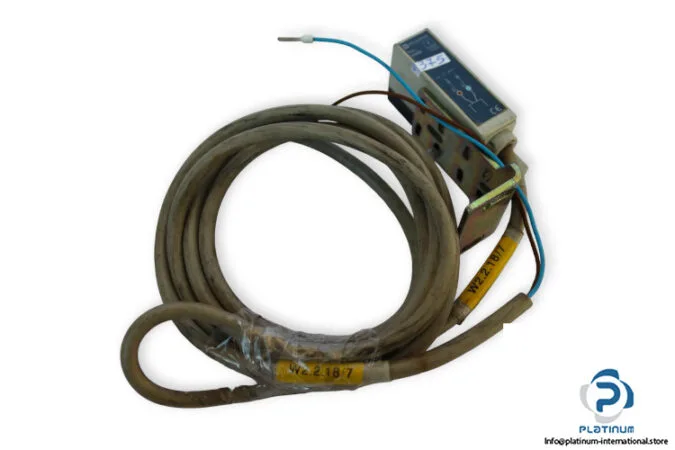

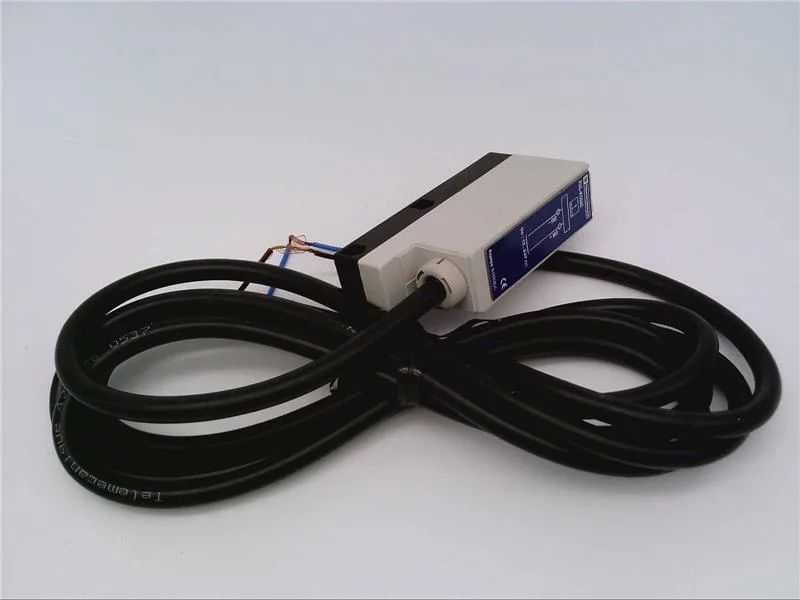

Telemecanique XULK0830 Through Beam Emitter, 8 m
MPNXULK0830
Telemecanique XUL-K0830, Through Beam Emitter Sensor, 12-24 VDC, 8 m sensing range, IP67.
$75.00 – $168.97Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Model | XUL-K0830 |
| Parameter | Value |
|---|---|
| Type | Through Beam Emitter Sensor |
| Parameter | Value |
|---|---|
| Operating voltage range | 12 … 24 V DC |
| Parameter | Value |
|---|---|
| Connection type | Cable 2-Wires, 2 m |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 … 55 °C |
| Parameter | Value |
|---|---|
| Sensing Range | 8 m |
| Condition | Used |
| Parameter | Value |
|---|---|
| Weight | 0,12 kg |
| Shelf no. | 240624 , 241124 |
| Dimensions | 70 x 35 x 18 mm |
| Type of product | Through Beam Emitter Sensor |
| Housing material | Plastic |
| IP rating | IP67 |
| Rated switching current | 35 mA |
Product details
Frequently asked questions
What is the XULK0830 listed type and model?
Type: Through Beam Emitter Sensor. Model: XUL-K0830.
MPN
XULK0830
