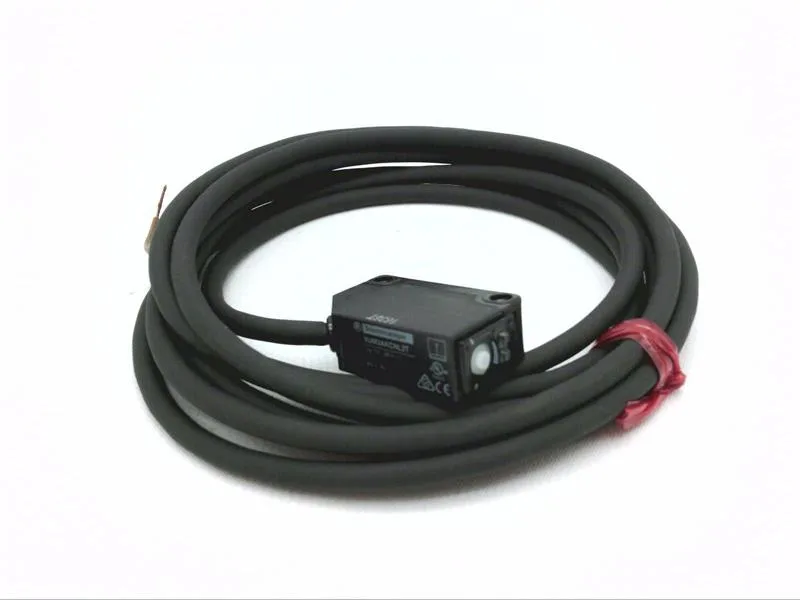

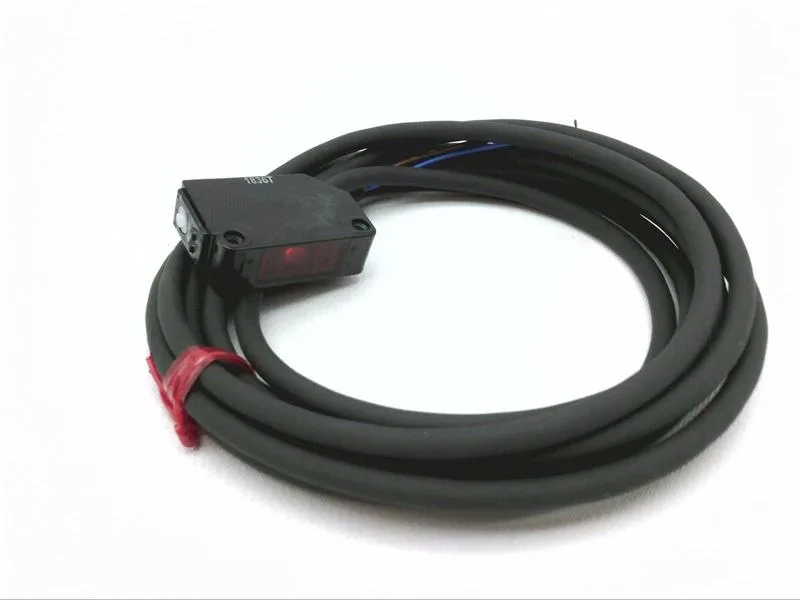

The XUM2AKCNL2T is a miniature thru-beam photoelectric sensor transmitter from the Schneider Electric OsiSense XU range. It's a DC-powered unit with a plastic body, sized at 20 mm deep, 11 mm wide, and 34 mm high — that's another SKU that fits tight panel spaces or conveyor-side brackets where a cylindrical sensor won't. The thru-beam detection system means the transmitter and receiver are separate; this one is the transmitter side, so you'll need the matching receiver for a complete pair.
XUM2AKCNL2T OsiSense XU Photoelectric Sensor, Thru Beam, DC
MPNXUM2AKCNL2T
Schneider Electric OsiSense XU, XUM2AKCNL2T, miniature thru-beam photoelectric sensor transmitter, plastic body, DC supply, 20 mm depth, 11 mm width, 34 mm height.
$41.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Material | Plastic |
| Width | 11 mm |
| Height | 34 mm |
| Parameter | Value |
|---|---|
| Depth | 20 mm |
| Sensor name | XUM |
| Series name | General purpose single mode |
| Product type | Photoelectric Sensor |
| Sensor design | Miniature |
| Product weight | 0.063 kg |
| Detection system | Thru beam |
| Range of product | OsiSense XU |
| Supply circuit type | DC |
| Electronic sensor type | Photoelectric Sensor transmitter |
Product details
Frequently asked questions
How do I get current pricing and availability for XUM2AKCNL2T?
Submit an RFQ through this listing. Availability and current pricing are confirmed at quote time; the estimated lead time is 4 to 6 weeks.
What is XUM2AKCNL2T's listed depth (20 mm) on this component line?
The depth is 20 mm. That's the dimension from the mounting face to the back of the body — important for clearance in shallow enclosures or behind a panel door.
What is XUM2AKCNL2T's listed width (11 mm) on this component line?
The width is 11 mm. That's the narrow dimension across the sensor body — it fits into a standard 12 mm slot or bracket without modification.
