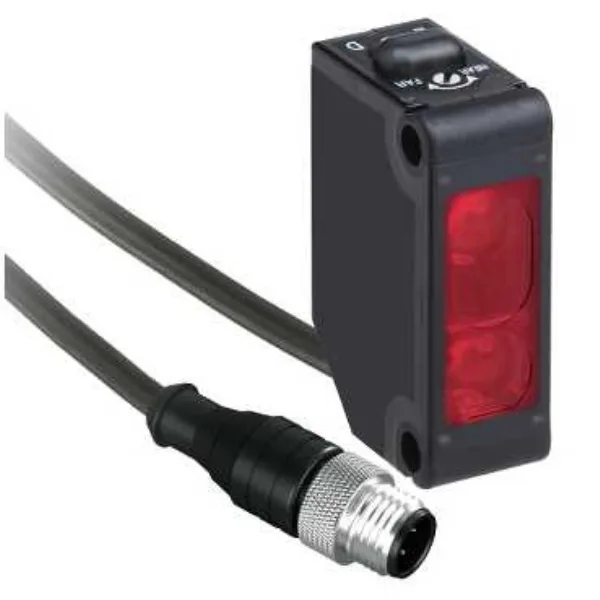

The Telemecanique XUMTAPCNL03M12 is a polarized reflex photoelectric sensor from the OsiSense XUM series, designed for reliable detection of reflective targets in industrial automation. It operates on 12 to 24 VDC with a PNP 3-wire output configurable as NO or NC, and delivers a solid-state output rated at 100 mA load current. Sensing distance is 1 m with the XUZC50CR reflector or 2 m with the XUZC50 reflector, with a 1 ms response time. The 4-pin M12 male connector simplifies field wiring, and the IP67-rated PBT housing handles washdown environments.
Telemecanique XUMTAPCNL03M12 Polarized Reflex Sensor, PNP, M
MPNXUMTAPCNL03M12
Telemecanique OsiSense XUM series, XUMTAPCNL03M12, polarized reflex photoelectric sensor, PNP NO/NC, 12-24 VDC, 100 mA, 1 m/2 m range, M12 connector, IP67.
$40.64Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Model | XUM |
| Parameter | Value |
|---|---|
| Type | POLARIZED REFLEX |
| Sensing distance | 1 M (XUZC50CR), 2 M (XUZC50) |
| Response time | 1 MILLISECOND |
| Parameter | Value |
|---|---|
| Operating voltage range | 12 TO 24 VDC |
| Parameter | Value |
|---|---|
| Output configuration | NO/NC, PNP 3 WIRE |
| Load current | 100 MILLIAMPERE |
| Parameter | Value |
|---|---|
| Connection type | 4 PIN M12 MALE CONNECTOR |
| Parameter | Value |
|---|---|
| Enclosure | IP67 |
| Operating temperature range | -13 TO 131 DEG F |
| Parameter | Value |
|---|---|
| Body material | PBT |
Product details
Frequently asked questions
What is the closest functional second-source to XUMTAPCNL03M12?
The XUKT1KSML2 is a close functional second-source: both are polarized reflex sensors with 12-24 VDC supply and 100 mA output. The XUKT1KSML2 has a 1.5 m range, 0.3 ms response, and a 2 m cable; the XUMTAPCNL03M12 offers up to 2 m range with the correct reflector, 1 ms response, and an M12 connector. If your panel uses a cable entry, the XUKT1KSML2 may drop in without rewiring; if it uses an M12 connector, the XUMTAPCNL03M12 is the direct fit.
What is the UPC for XUMTAPCNL03M12?
The UPC is 78590115906.
