The XUN9ANBNM12J00: A 1 ms response time means this sensor resolves targets passing at speeds up to roughly 1 m/s if the object is 1 mm wide — for faster lines, verify the dwell time against your cycle. The 100 mA load capacity covers direct sinking into a PLC input or pilot relay; stay within that limit if driving an external contactor coil without an interposing buffer. Polarized reflex optics use a polarizing filter on the emitter and receiver, so the sensor ignores unwanted reflections from glossy or metallic surfaces as long as the retroreflector stays in clean alignment. Valox body and PMMA lens handle the range between -13°F and 131°F without optical degradation — which tracks typical indoor industrial ambients.
XUN9ANBNM12J00 Square D Photoelectric Sensor, 2m, NPN, M12
MPNXUN9ANBNM12J00

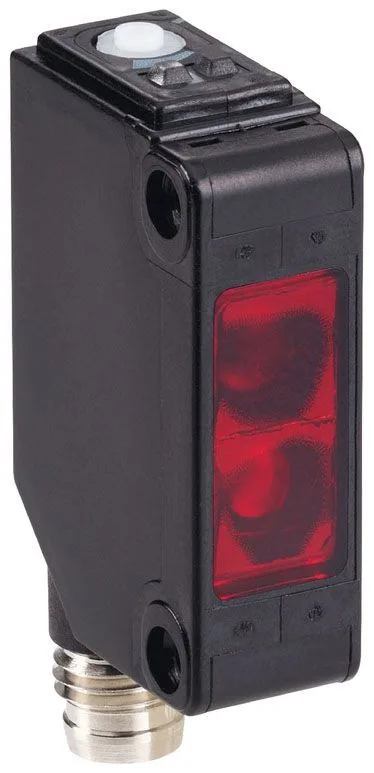

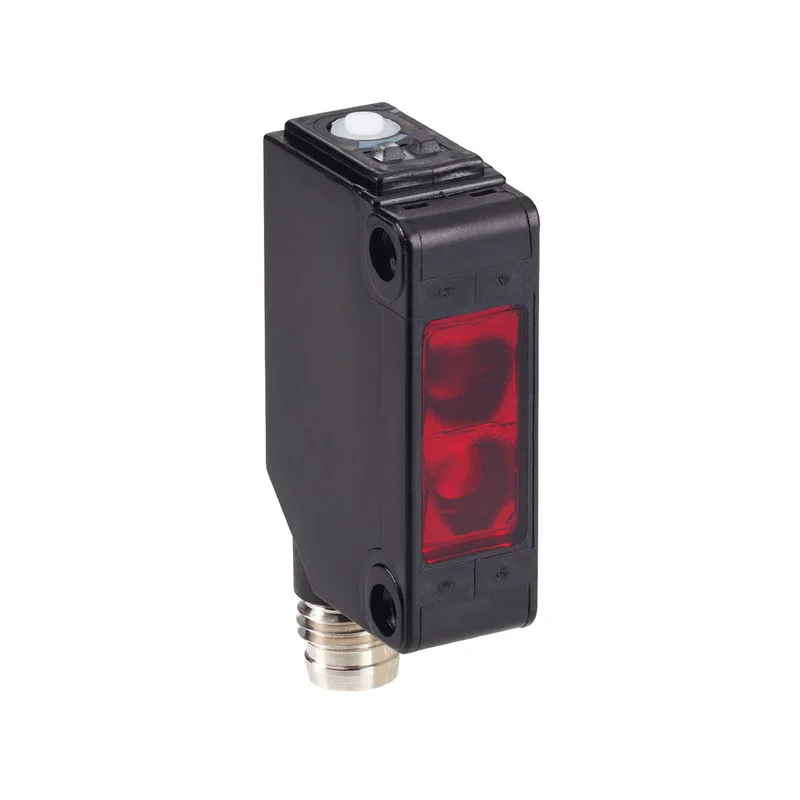

Square D Telemecanique XUN9ANBNM12J00 photoelectric sensor, polarized reflex, 2 m, NPN NC, 12-24 VDC, M12, IP67.
$233.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Model | XUN |
| Parameter | Value |
|---|---|
| Type | POLARIZED REFLEX |
| Sensing distance | 2 M |
| Response time | 1 MILLISECOND |
| Parameter | Value |
|---|---|
| Operating voltage range | 12 TO 24 VDC |
| Parameter | Value |
|---|---|
| Output configuration | NC, NPN 3 WIRE |
| Load current | 100 MILLIAMPERE |
| Parameter | Value |
|---|---|
| Connection type | M12 CONNECTOR |
| Parameter | Value |
|---|---|
| Enclosure | IP67 |
| Operating temperature range | -13 TO 131 DEG F |
| Parameter | Value |
|---|---|
| Body material | VALOX[R] |
Product details
Frequently asked questions
What type of photoelectric sensor is it?
It is a polarized reflex type — the emitter uses polarized light and requires a matching reflector to sense, which reduces false triggers on shiny surfaces.
What compliance approvals does it carry?
The sensor holds UL, CSA, and CE approvals as listed in the specifications.
