Schneider Electric XUSL4E14F031NWC

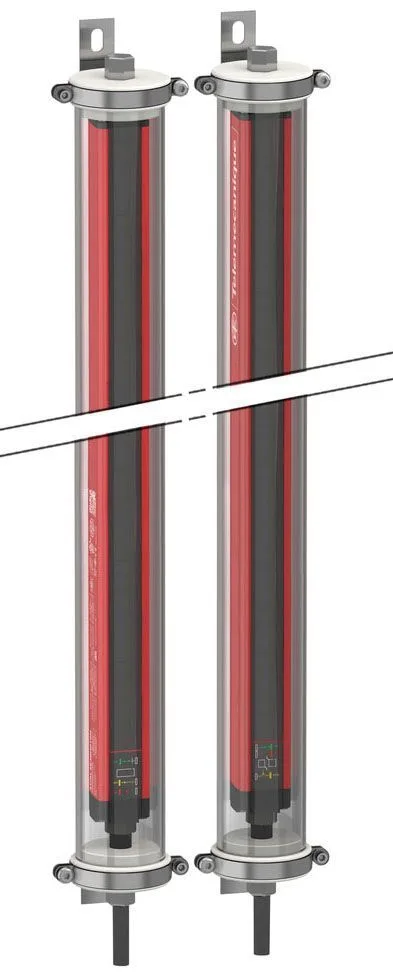

XUSL4E14F031NWC Type 4 Safety Light Curtain, 14mm, 310mm, 5m

MPN XUSL4E14F031NWC
Active

Schneider Electric XUSL series, Type 4 safety light curtain, receiver and transmitter in box package, 14 mm detection capability, 310 mm protective height, 5.0 m operating range, 30 beams, 24 VDC, IP69K.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XUSL4E14F031NWC specifications
ParameterValue
SeriesXUSL
Supply voltage24 VDC
Temp operating max55 °C
Temp operating min-20 °C
PackageBox

Product details

Type 4 safety light curtain, 14 mm finger detection

The XUSL4E14F031NWC is a Type 4 safety light curtain from the XUSL series, built as a receiver-and-transmitter pair in a single box package. The 14 mm detection capability qualifies as finger protection per IEC 61496-1, meaning it catches a hand or finger reaching into the hazard zone before it contacts moving machinery. Rated for a 0 to 5.0 m operating range and a 310 mm protective height, this curtain covers a vertical plane that guards a typical machine access opening. The 30 beams span that height at a pitch fine enough to resolve a 14 mm object anywhere in the field.

IP69K and washdown deployment

MPN
XUSL4E14F031NWC
