Standard M8 4-pin connector simplifies cable assembly sourcing – compatible with off-the-shelf cordsets in any geography. I'd quote this against an RFQ for volume; the programmable output gives it a wider install base, so supply depth tends to be solid.

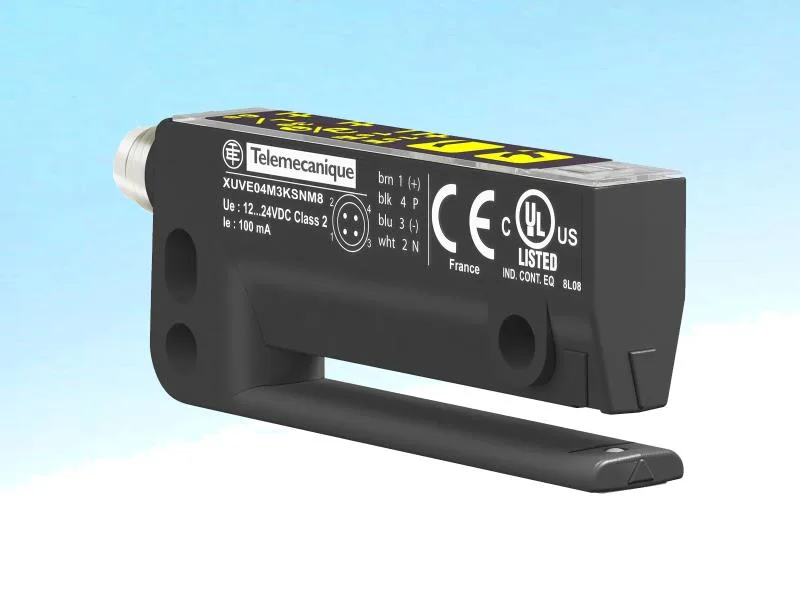

Telemecanique XUVE04M3KSNM8 Fork Photoelectric Sensor, 3 mm,
MPNXUVE04M3KSNM8
Telemecanique OsiSense XUV series, XUVE04M3KSNM8 fork photoelectric sensor, 12-24 VDC, IP65, M8 4-pin, programmable PNP/NPN, 3 mm range, 0.1 ms response, 100 mA load.
$52.07 – $135.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Model | XUV |
| Parameter | Value |
|---|---|
| Sensing distance | 0.12 INCH |
| Response time | 0.1 MILLISECOND |
| Parameter | Value |
|---|---|
| Operating voltage range | 12 TO 24 VDC |
| Parameter | Value |
|---|---|
| Output configuration | NPN/PNP |
| Load current | 100 MILLIAMPERE |
| Parameter | Value |
|---|---|
| Connection type | M8 CONNECTOR, 4 PIN |
| Parameter | Value |
|---|---|
| Enclosure | IP65 |
| Operating temperature range | -4 TO 140 DEG F |
| Parameter | Value |
|---|---|
| Body material | POLYAMIDE |
Product details
Frequently asked questions
What is the closest functional second-source — XUDA2PSMM8?
XUDA2PSMM8 is a different series (XUD) with a fixed PNP output, while the XUVE04M3KSNM8 has a programmable NPN/PNP output and a fork form factor. They share the same M8 connector and 100 mA load, but mounting dimensions and sensing range are not identical. Verify panel layout and wiring before substituting.
What compliance documentation does this sensor carry?
UL (Canada and US) and CE approvals are listed. No RoHS or REACH declaration is explicitly stated in the available spec data.
