Schneider Electric XX7V1A1PAM12 — Machine Safety Accessories

Schneider Electric XX7V1A1PAM12

MPNXX7V1A1PAM12

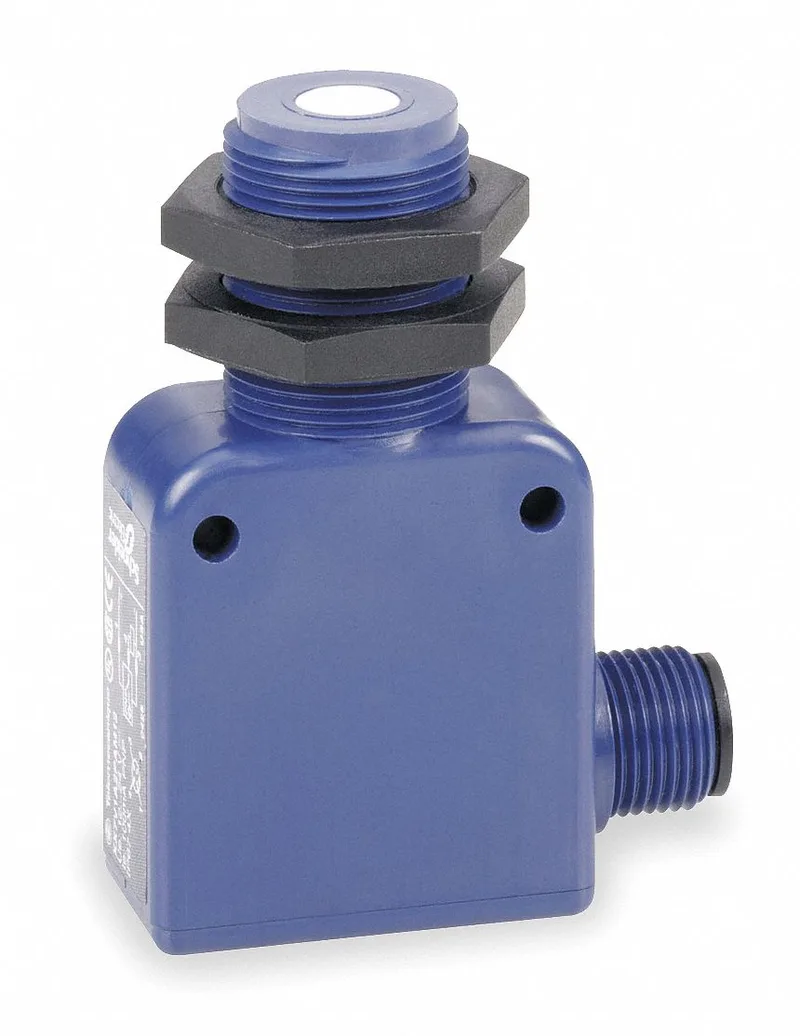

TELEMECANIQUE SENSORS Rectangular Ultrasonic Sensor: Built-in Connector, 4 - Pin M12, 10-28V DC, PNP

Schneider Electric XX7V1A1PAM12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

XX7V1A1PAM12 — Identification
ParameterValue
SeriesXX7
XX7V1A1PAM12 — Safety & Performance
ParameterValue
Response time10 msec
Switching frequency300 kHz
Operating frequency300 kHz
XX7V1A1PAM12 — Sensing & Detection
ParameterValue
Sensing distance, max.51 cm
XX7V1A1PAM12 — I/O
ParameterValue
Output circuit typePNP
XX7V1A1PAM12 — Electrical
ParameterValue
Load current, max.40 mA
XX7V1A1PAM12 — Mechanical
ParameterValue
Body materialPlastic
Sensor body styleRectangular
Sensor face orientationStraight
XX7V1A1PAM12 — Environmental
ParameterValue
IP ratingIP67
NEMA enclosure rating4; 4X; 6; 6P; 12; 13
Operating temperature, max.149 °F
Operating temperature, min.-4 °F
Resistance properties (shock/vibration/EMC)Electrical Fast Transient Resistant; Electromagnetic Fields Resistant; Electrostatic Discharge Resistant; Shock Resistant; Vibration Resistant
XX7V1A1PAM12 — Approvals
ParameterValue
Compliance standardsCE; IEC 60947-5-2; REACH; UL Listed
MPN
XX7V1A1PAM12
