Schneider Electric XXS30P1VM12 — Machine Safety Accessories

Schneider Electric XXS30P1VM12

MPNXXS30P1VM12

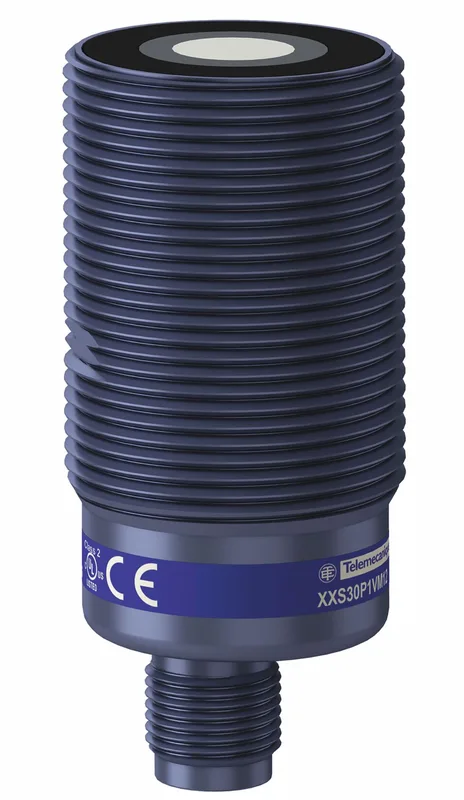

Telemecanique XXS30P1VM12 Ultrasonic Sensor|Telemecanique XXS30P1VM12 Ultrasonic Sensor

Schneider Electric XXS30P1VM12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

XXS30P1VM12 — Identification
ParameterValue
SeriesXXS
XXS30P1VM12 — Safety & Performance
ParameterValue
Response time100 msec
Switching frequency200 kHz
Operating frequency200 kHz
XXS30P1VM12 — Sensing & Detection
ParameterValue
Sensing distance, max.100 cm
XXS30P1VM12 — I/O
ParameterValue
Output circuit typeAnalog
XXS30P1VM12 — Electrical
ParameterValue
Load current, max.30 mA
XXS30P1VM12 — Mechanical
ParameterValue
Body materialPBT
Sensor body styleCylindrical
Sensor face orientationStraight
XXS30P1VM12 — Environmental
ParameterValue
IP ratingIP65; IP67
Operating temperature, max.158 °F
Operating temperature, min.-13 °F
Resistance properties (shock/vibration/EMC)Electrical Fast Transient Resistant; Electromagnetic Fields Resistant; Electrostatic Discharge Resistant; Shock Resistant; Vibration Resistant
XXS30P1VM12 — Approvals
ParameterValue
Compliance standardsCE; CSA C22.2 No 14; cULus; E2; EAC; Ecolab; EN/IEC 60947-5-2; RCM; REACH; UL 508
MPN
XXS30P1VM12
