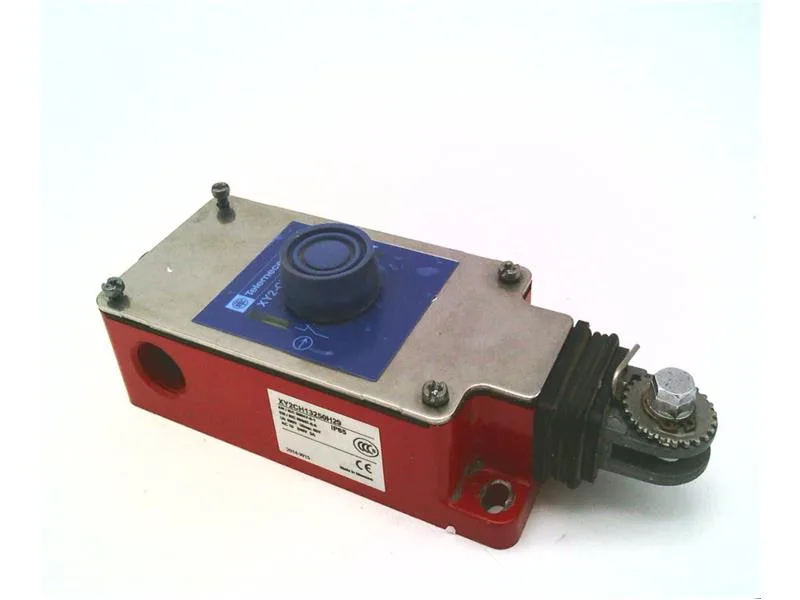

Schneider Electric XY2CH13250H29
MPNXY2CH13250H29
XY2-CH Rope Pull Switch, 15m, NO/NC, Straight
$69.85Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Contacts type and composition | 1 NC + 1 NO |
| Number of cables | 1 |
| Cable entry number | 3 tapped entry for ISO M20 cable gland |
| Connections - terminals | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| Trigger cable anchor point | RH or LH side |
| Trigger cable maximum length | 30 m |
| Distance between cable supports | 5 m |
| Body material | Zamak |
| Cover material | Stainless steel |
| Shipping weight | 2 kg |
| Mechanical durability | 800000 cycles |
| Reset | By booted push-button |
All specifications+8 ▾
| Parameter | Value |
|---|---|
| Marking | CE |
| Manufacturer | Schneider Electric |
| Safety level | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Local signalling | Without pilot light |
| Contact operation | Slow-break |
| Tightening torque | 0.8…1.2 N.m |
| Estimated lead time | 6 - 8 Weeks. |
| Safety reliability data | B10d = 4000000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
MPN
XY2CH13250H29
