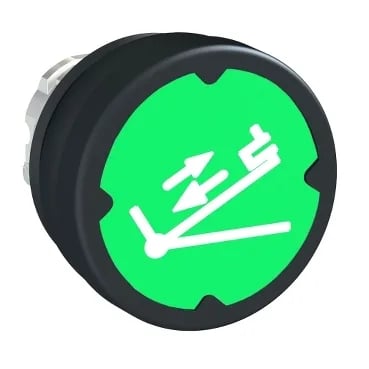

Schneider Electric ZB4BC38061 — Emergency Stop Pushbuttons

Schneider Electric ZB4BC38061

MPNZB4BC38061
Obsolete

pushbutton headfor harsh environnement - green - with marking

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ZB4BC38061 — Identification
ParameterValue
Product typeHead for push-button
Product rangeHarmony XB4
Device short nameZB4
Operator profileGreen flush, type H061 (white)
ZB4BC38061 — Function & Operation
ParameterValue
Signaling head shapeRound
ZB4BC38061 — Switching & Contacts
ParameterValue
Mechanical durability (cycles)10000000 cycles
ZB4BC38061 — Mechanical
ParameterValue
Mounting diameter22 mm
ZB4BC38061 — Environmental
ParameterValue
IP protection ratingIP66 conforming to IEC 60529 IP69K IP67 IP69
Operating temperature range-40...70 °C
Storage temperature range-40...85 °C
Vibration resistance5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
ZB4BC38061 — Approvals & Standards
ParameterValue
Standards / approvalsUL 508 IEC 60947-1 CSA C22.2 IEC 60947-5-1
MPN
ZB4BC38061
