ZB4BD912 (schneider) — datasheet specifications below.
ZB4BD912 | schneider | selector-switches
MPNZB4BD912
Active

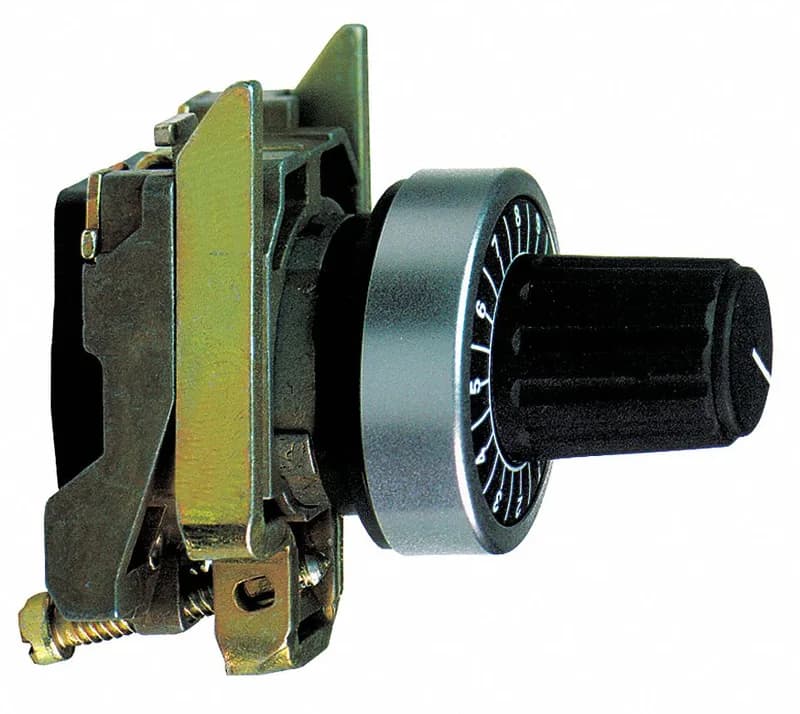

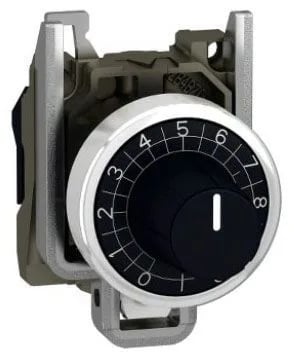

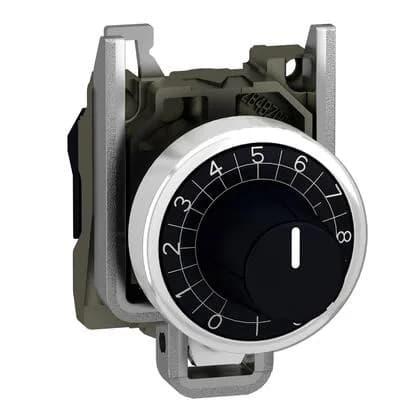

Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6mm shaft|Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6mm shaft
$46.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Head type | Standard |
| Range of product | Harmony XB4 |
| Product or component type | Head + mounting base for potentiometer |
| IK degree of protection | IK03 conforming to IEC 50102 |
| IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Mounting diameter | 0.9 in (22 mm) |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| Bezel material | Chromium plated metal |
| Standards | UL 508 IEC 60947-1 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-5 JIS C8201-1 |
All specifications
| Parameter | Value |
|---|---|
| Category | US10CS222468 |
| Operator profile | knurled knob, with white) |
| Device short name | ZB4 |
| Device presentation | Basic element |
| Protective treatment | TH |
| Shape of signaling unit head | Round |
| Sale per indivisible quantity | 1 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
Product details
MPN
ZB4BD912
