Schneider Electric ZB4BG2E2
MPNZB4BG2E2
Active

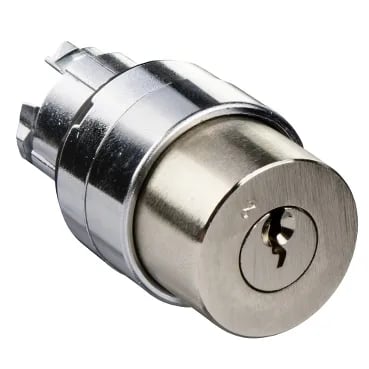

Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, special key E2
$95.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Head type | Standard |
| Type of keylock | Special key |
| Range of product | Harmony XB4 |
| Product or component type | Head for key selector switch |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 |
| Mounting diameter | 22 mm |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Bezel material | Chromium plated metal |
| CAD overall depth | 72 mm |
| CAD overall width | 29 mm |
All specifications
| Parameter | Value |
|---|---|
| CAD overall height | 29 mm |
| Mechanical durability | 1000000 cycles |
| Standards | UL 508 EN/IEC 60947-5-1 GB 14048.5 CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-5-5 |
| Operator profile | Black key switch |
| Device short name | ZB4 |
| Device presentation | Basic element |
| Overvoltage category | Class I conforming to IEC 60536 |
| Protective treatment | TH |
| Key withdrawal position | Left |
| Electrical composition code | C3 for C5 for C6 for C7 for C8 for C11 for C15 for <1 contacts using single blocks in front mounting |
| Shape of signaling unit head | Round |
| Operator position information | 2 positions 90° |
| Sale per indivisible quantity | 1 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -40...70 °C |
MPN
ZB4BG2E2
