Schneider Electric ZB4BG2E7 — Emergency Stop Pushbuttons

Schneider Electric ZB4BG2E7

MPNZB4BG2E7
Active

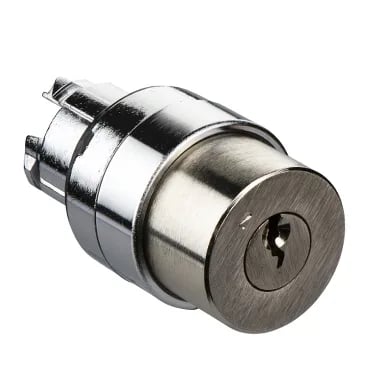

Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, special key E7

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ZB4BG2E7 — Identification
ParameterValue
Product typeHead for key selector switch
Product rangeHarmony XB4
Device short nameZB4
Operator profileBlack key switch
ZB4BG2E7 — Function & Operation
ParameterValue
Signaling head shapeRound
ZB4BG2E7 — Switching & Contacts
ParameterValue
Mechanical durability (cycles)1000000 cycles
ZB4BG2E7 — Mechanical
ParameterValue
Mounting diameter22 mm
ZB4BG2E7 — Environmental
ParameterValue
IP protection ratingIP66 conforming to IEC 60529 IP67 IP69 IP69K
Operating temperature range-40...70 °C
Storage temperature range-40...70 °C
Vibration resistance5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
ZB4BG2E7 — Approvals & Standards
ParameterValue
Standards / approvalsEN/IEC 60947-5-4 EN/IEC 60947-5-5 EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 GB 14048.5 UL 508
MPN
ZB4BG2E7
