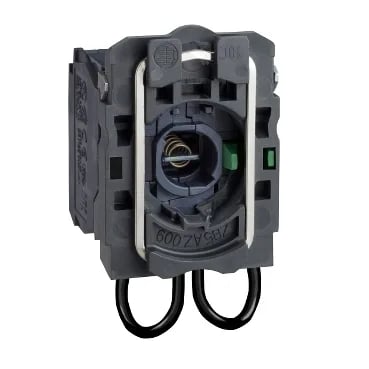

Schneider Electric ZB5AVB1156
MPNZB5AVB1156
Active
Complete pre wired body/light block assembly, Harmony XB5, XB4, white flashing light with body/fixing collar integral LED 24 V
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Complete pre-wired body/light block assembly |
| Product range | Harmony XB5 |
| Device short name | ZB5 |
| Parameter | Value |
|---|---|
| Operating temperature range | -40...70 °C |
| Storage temperature range | -40...70 °C |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Parameter | Value |
|---|---|
| Standards / approvals | IEC 60947-5-4 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-1 IEC 60947-5-1 UL 508 JIS C8201-1 |
MPN
ZB5AVB1156
