Schneider Electric TM3X Series

7 variants · Schneider Electric

About the Schneider Electric TM3X Series

The Schneider Electric TM3X Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common height of 3.5 in (90 mm), IP rating of IP20 and pollution degree of 2. Variants differ by depth, main product or component type and operating temperature, so you can match the exact depth your application requires using the selection guide below.

Select a variant by

Depth: 2.9 in (73.3 mm) · 3.3 in (85 mm)
Main product or component type: Module hight speed counting · Remote receiver module · Remote transmitter module
Operating temperature: -4...140 °F (-20...60 °C) horizontal installation -4...122 °F (-20...50 °C) vertical installation · 14...131 °F (-10...55 °C) horizontal installation 14...122 °F (-10...50 °C) vertical installation
Storage temperature: -40...158 °F (-40...70 °C) · -40...185 °F (-40...85 °C)
Temp operating max: 55 °C · 60 °C
Temp operating min: -20 °C · -10 °C
Temp storage max: 70 °C · 85 °C
Width: 0.93 in (23.65 mm) · 1.5 in (39 mm)

Shared specifications

Height: 3.5 in (90 mm)
IP rating: IP20
Pollution degree: 2
Temp storage min: -40 °C

Variant comparison

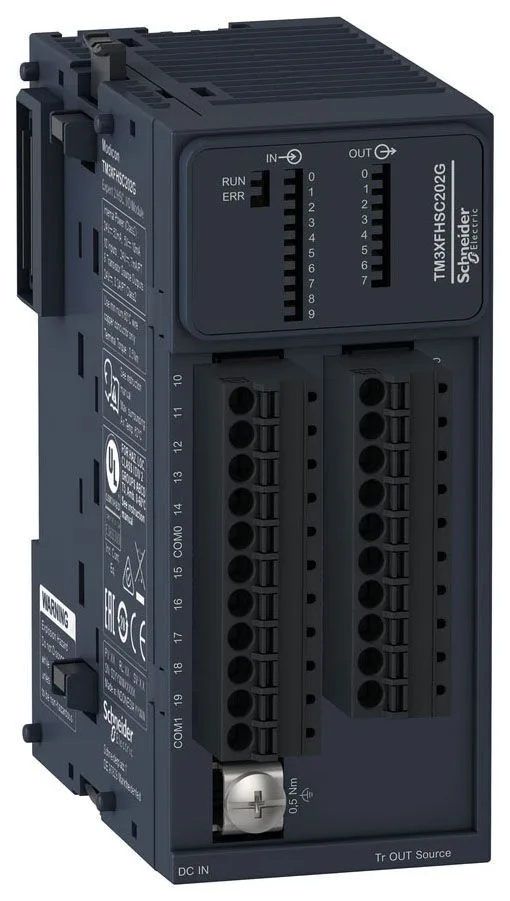

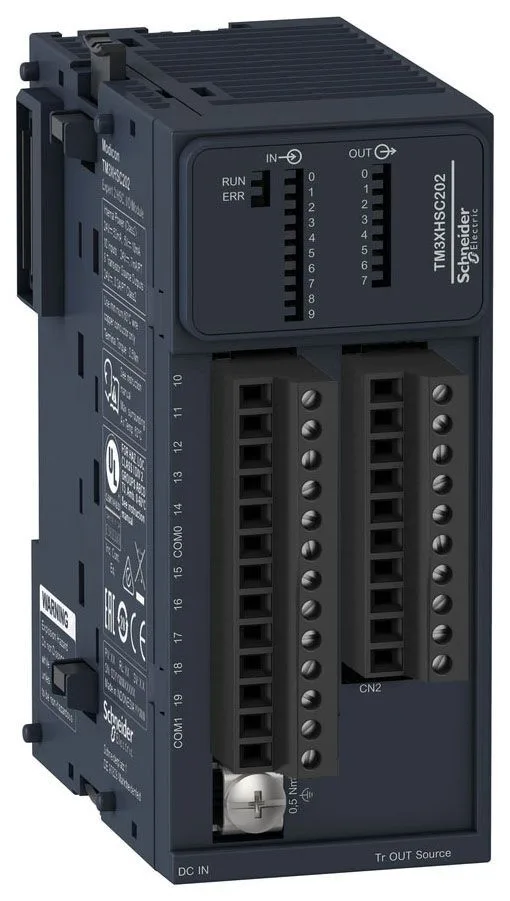

Parameter	TM3XHSC202	TM3XHSC202G	TM3XFHSC202	TM3XREC1	TM3XTRA1
Depth	3.3 in (85 mm)	3.3 in (85 mm)	3.3 in (85 mm)	2.9 in (73.3 mm)	2.9 in (73.3 mm)
Main product or component type	Module hight speed counting	Module hight speed counting	Module hight speed counting	Remote receiver module	Remote transmitter module
Operating temperature	-4...140 °F (-20...60 °C) horizontal installation -4...122 °F (-20...50 °C) vertical installation	-4...140 °F (-20...60 °C) horizontal installation -4...122 °F (-20...50 °C) vertical installation	-4...140 °F (-20...60 °C) horizontal installation -4...122 °F (-20...50 °C) vertical installation	14...131 °F (-10...55 °C) horizontal installation 14...122 °F (-10...50 °C) vertical installation	14...131 °F (-10...55 °C) horizontal installation 14...122 °F (-10...50 °C) vertical installation
Storage temperature	-40...185 °F (-40...85 °C)	-40...185 °F (-40...85 °C)	-40...185 °F (-40...85 °C)	-40...158 °F (-40...70 °C)	-40...158 °F (-40...70 °C)
Temp operating max	60 °C	60 °C	60 °C	55 °C	55 °C
Temp operating min	-20 °C	-20 °C	-20 °C	-10 °C	-10 °C
Temp storage max	85 °C	85 °C	85 °C	70 °C	70 °C
Width	1.5 in (39 mm)	1.5 in (39 mm)	1.5 in (39 mm)	0.93 in (23.65 mm)	0.93 in (23.65 mm)

Request a quote on any Schneider Electric TM3X Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
