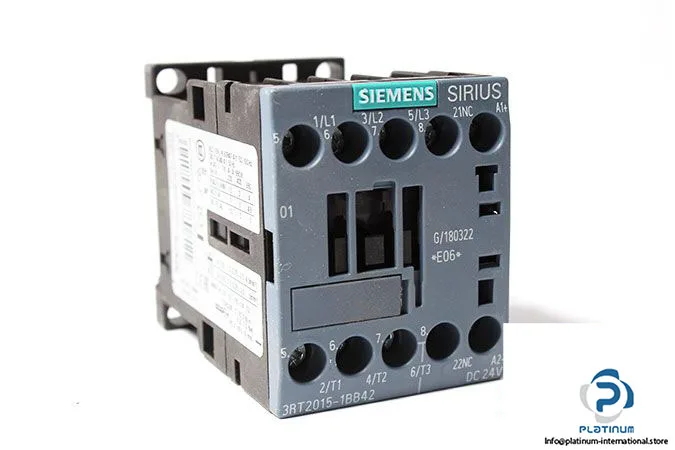

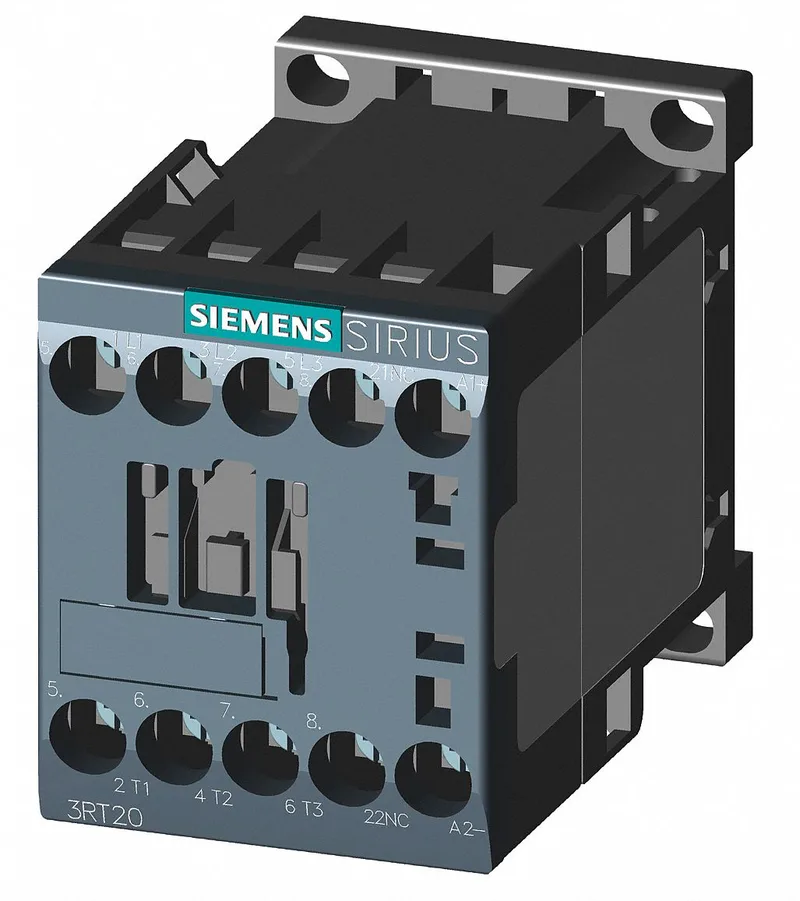

Siemens 3RT2015-1BB42 SIRIUS Power Contactor, 24 V Coil, S00

MPN3RT2015-1BB42

Active

Siemens SIRIUS 3RT2015-1BB42 power contactor, S00 frame, 24 V DC coil, screw-type terminals, 45 mm width, DIN rail snap-on mounting.

$115.56Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RT2015-1BB42 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2015-1BB42 — Identification
Parameter	Value
Contactor frame size	S00

3RT2015-1BB42 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated operational current, AC-4 @ 400 V	6.5 A
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	0.75 hp
Rated value @ 24 V	10 A
Rated value @ 60 V	2 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2015-1BB42 — Control & Coil
Parameter	Value
Control supply voltage type	DC

3RT2015-1BB42 — Contacts & Poles
Parameter	Value
Main poles	3
Main NO contacts	3
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2015-1BB42 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fuse	gG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fuse	gG: 10 A (500 V, 1 kA)

3RT2015-1BB42 — Connection & Mounting
Parameter	Value
Main circuit connection	screw-type terminals
Aux. / control circuit connection	screw-type terminals
Conductor cross-section, solid	0.5 ... 4 mm²
Conductor cross-section, solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mounting	Yes

3RT2015-1BB42 — Durability
Parameter	Value
Durability (operating cycles, typ.)	30 000 000
Durability with aux. switch block (cycles, typ.)	10 000 000

3RT2015-1BB42 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-55 ... +80 °C
Installation altitude, max.	2 000 m

3RT2015-1BB42 — Mechanical
Parameter	Value
Width	45 mm
Height	58 mm
Depth	73 mm

Product details

S00 frame, 24 V coil — the panel-fit constraints

The 3RT2015-1BB42: The screw terminals are the standard choice for panel wiring where ring or fork terminals are preferred over spring cages.

Switching duty and thermal envelope

The AC-4 ceiling is the limiting factor for high-duty-cycle reversing or jogging applications. The 85 °C span between storage extremes covers most warehouse and transport conditions without special handling. These numbers define the DC switching capability for control circuits — the current drops sharply above 60 V, so confirm the load current at the actual control voltage.
